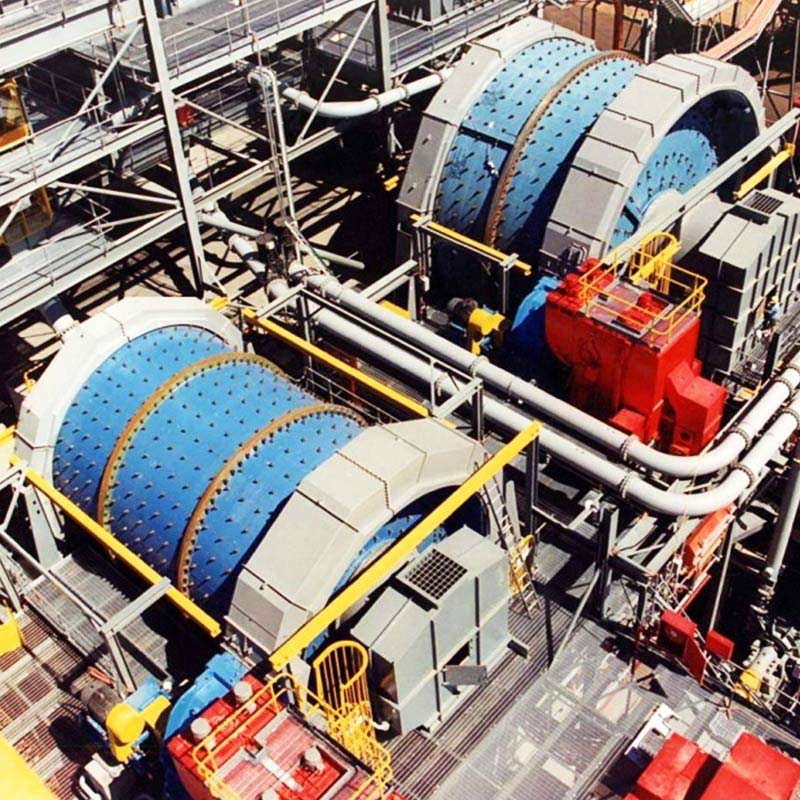

Air-Swept Coal Mill

Air-Swept Coal Mill

The air-swept coal mill can grind coal from 25 mm into powder. Both Electric engine and Diesel engine are optional. Capacity from 3t/h to 40t/h flexible.

Advantages

Air-swept coal mill is a kind of mechanical equipment that crushes and grinds coal briquette into pulverized coal, which is also important auxiliary equipment of pulverized coal furnace. When grinding coal in coal mill, it is mainly through crushing, shredding and pulverizing. Air-swept coal mill is main equipment of cement plant, which is mainly used for drying and grinding pulverized coal.

Coal Mill

Air-swept coal mill is mainly used to grind coal with all kinds of hardness, which is also suitable for ore grinding operation of cement, metallurgy, chemical industry and other industries.

Working process: raw materials are sent to grind mill through feeder and rotate with mill cylinder after the hot air entering the grinding mill, then coal and hot air carry out heat exchange. While the coal is crushed and ground, fine pulverized coal will be discharged from the discharge opening of mill driven by hot air.

Model Specifications

Spec.
(m)
Item
Φ2.2
×4.4
Φ2.4
×4.75
Φ2.4
×4.5+2
Φ2.5
×3.9
Φ2.6
×5.25+2.25
Φ2.8
×5+3
Φ2.9
×4.1
Φ3.0
×6+3
Φ3.2
×6.75+2
Φ3.4
×6+3
Φ3.8
×7+2.5
Φ3.8
×7.25+3.5
Speed
(r/min)
22.4 20.4 20.4 20 19.7 18.3 18.8 17.3 16.9 17.5 16.4 16.4
Capacity
(t/h)
8~9 12~14 11~12 10 13~14 16~17 14~16 19~20 27~29 28~30 38~40 41~43
Fineness
R80 (%)
10-12 8-10 8-10 8-10 8-10 8-10 8-10 8-10 8-10 12 12 12
Feeding
Size(mm)
<25 <25 <25 <25 <25 <25 <25 <25 <25 <25 <25 <25
Grinding
Media
Loading
(t)
20 22 22.5 22 28 32 35 43 50 55 80 85
Mositure
(%)
Inlet <10 <10 <10 <10 <10 <12 <10 <10 <10 <12 <12 <12
Outlet <2 <2 <2 <2 <2 <2 <2 <2 <2 <2 <2 <2
Temp.
(℃)
Inlet <350 <350 <350 <350 <350 <350 <350 <350 <350 <350 <350 <350
Outlet 60~80 60~80 60~80 70~90 70~90 60~80 60~80 70~90 80~90 60~80 60~80 60~80
Main
Reducer
ZD60 ZD60 ZD60

ZD60 MBY450

ZD70
MBY450

ZD70 MBY500 ZD80 MBY560 ZD80 MBY560 JDX630 JDX710 MBY710 MBY800
Main
Motor
(kw)
250 280 315 315 400 500 500 630 710 800 1250 1400
Weight
(t)
46 54 76 62 98 107 78 124 148 162 178 220
