Hammer Crusher

Hammer Crusher

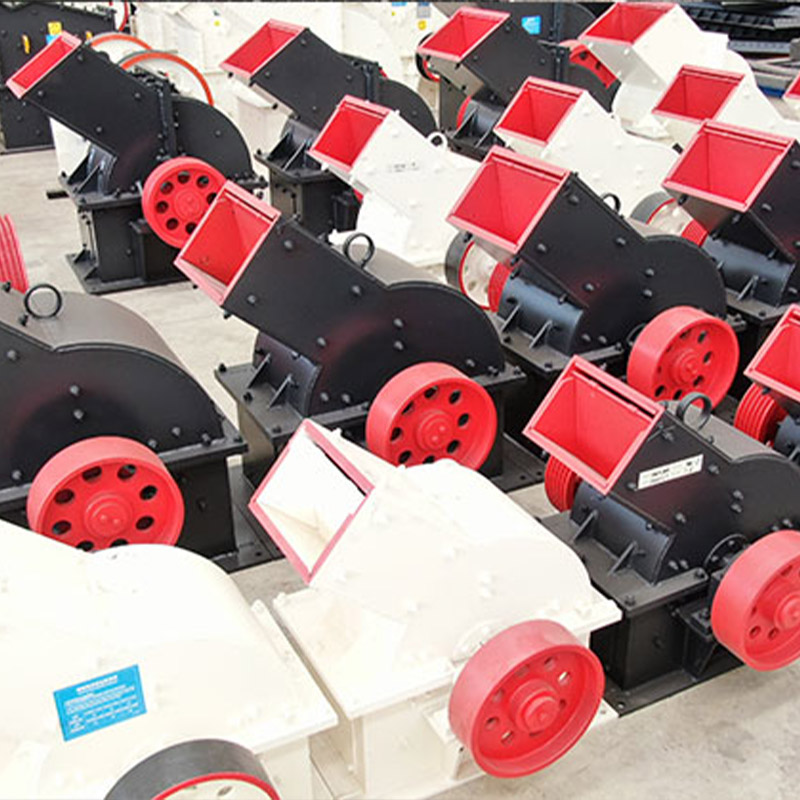

The small hammer crusher can crush Limestone, slag, coke, salt, chalk, gypsum, alums, iron ore, non-ferrous metals, granite, stone, sandstone, cobbles etc from 350 mm into 25mm. Both electric engine and diesel engine are optional. Capacity from 5t/h to 55t/h flexible.

Advantages

Hammer crusher is one kind of important ore crushing equipment, which plays an important role in stone crushing field. Feeding granularity of hammer crusher is 600 to 1800 mm. When crushing materials, hammer crusher can crush materials to below 25 mm at a time.

 Hammer crusher machine is very suitable for crushing limestone, slag, coal and other brittle materials. Large hammer crusher can crush stones with one meter diameter to about 20 mm at a time, which has very large crushing capacity.

Heavy Hammer Crusher Small Hammer Crusher

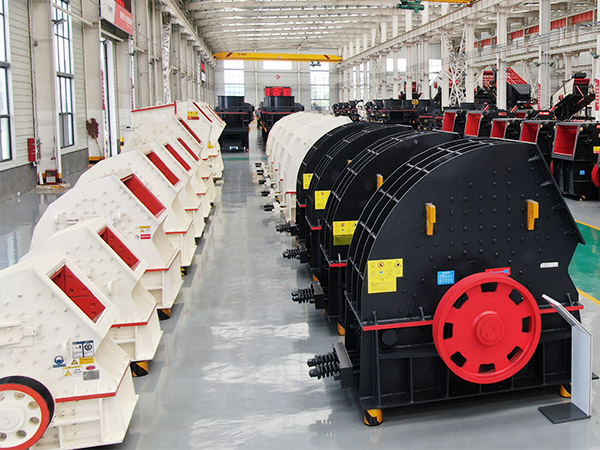

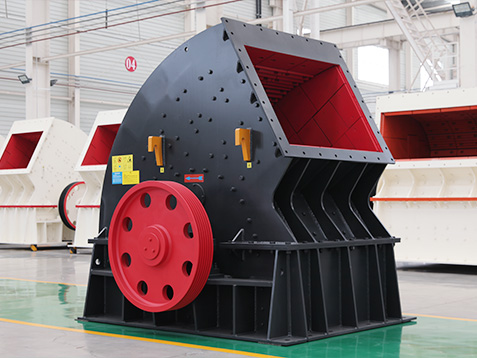

Heavy Hammer Crusher

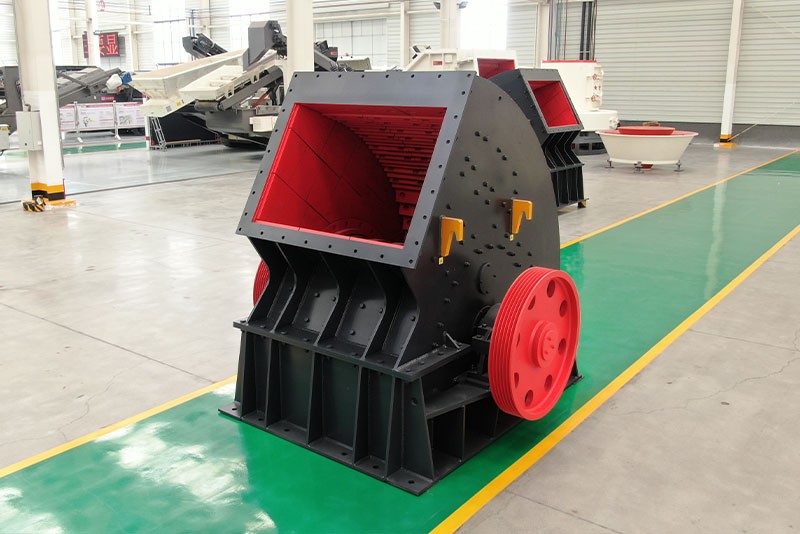

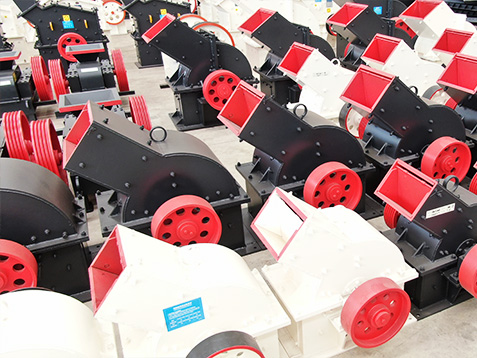

Small Hammer Crusher

As one kind of medium and small crusher machine, hammer crusher can be used to crush limestone, coal cinder, lump coal, coke, etc., which is widely applied in various industries. Hammer mill crusher has such advantages as big crushing ration, strong production capacity, less over grinding phenomenon, etc., which is more suitable for materials with medium hardness. Hammer head and gas plate of hammer crusher are easy to wear, which hsould be timely replaced accroding to abrasion conditions.

hammer crusher

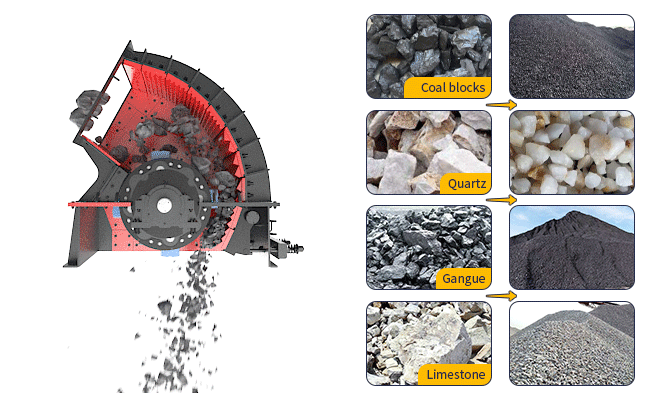

Hammer mill crusher mainly relies on high-speed rotating hammerhead to crush materials. Hammerhead is installed on the rotor which is driven by high-speed electromotor. Hammer crusher also can be divided into ring hammer crusher and heavy hammer crusher. There two types of hammer breakers are divided according to structure of hammerhead. When buying hammer crushers, customers should pay attention to distinguish these two types of hammer crushers.

Model Specifications

Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
