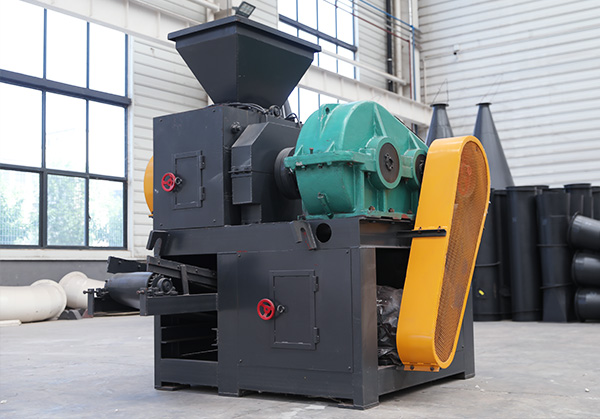

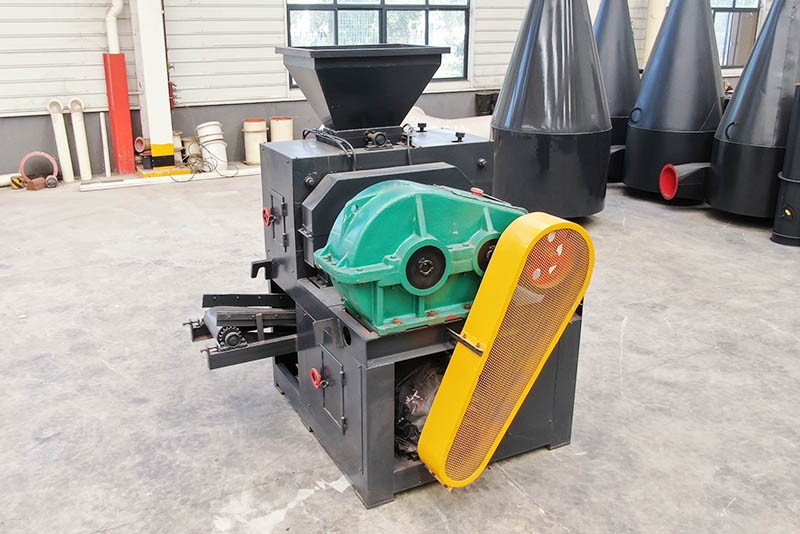

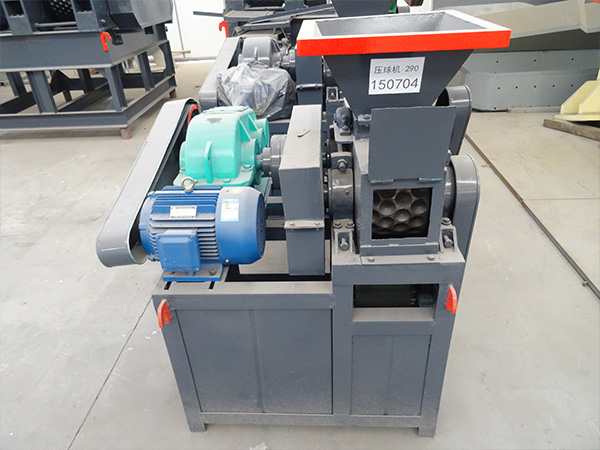

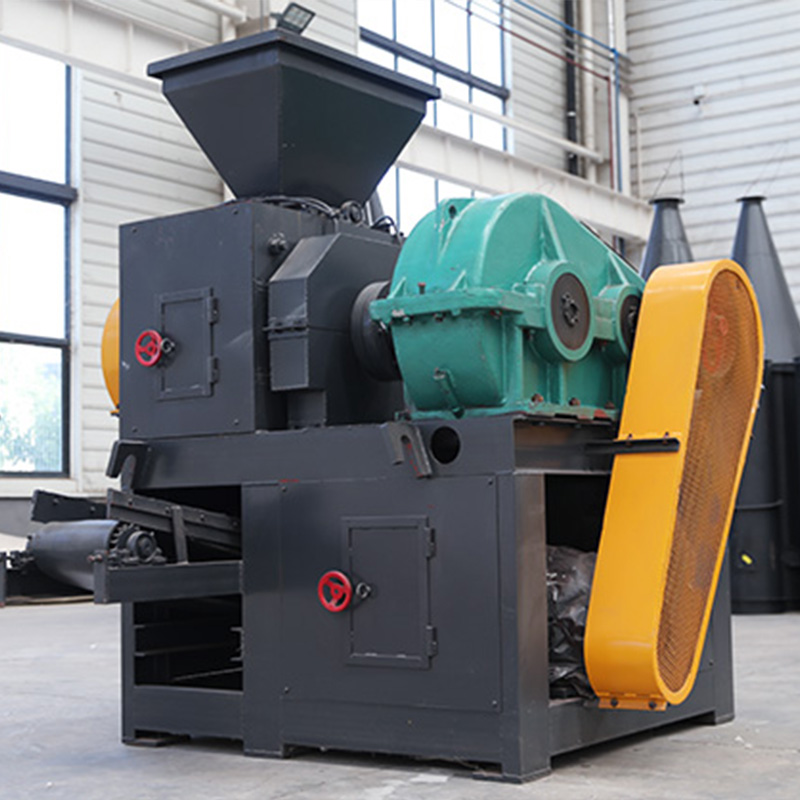

Coal Briquette Machine

Coal Briquette Machine

It can press coal powder into coal briquettes.Both Electric engine and Diesel engine are optional.Capacity : from 2t/h to 30 t/h flexible.


Brief Introduction to Process of Coal Briquette Press Machine

Pulverized coal molding process can be divided into cold press molding and hot press molding, which is dominated by cold press molding. Coal press molding is also divided into binder forming and no binder forming, which is dominated by binder forming. According to national conditions of our country, pulverized coal molding more uses cold press molding which is adding binder, medium and low pressure and without drying.

Why we need coal briquette machine

At present, people do take the protection of the environment very seriously and the "environmental law" has been released by all nations government. At the same time, the environment protection regulations are getting more and more rigorous. But in many cold areas, due to the need to burn a large number of coal each year and the annual emissions of soot and sulfur dioxide are more, these places have become the hardest hit by air pollution. Many countries have begun to rectify the polluted coal boilers, dismantle heavily polluted large chimneys massively, promote the use of clean fuel and develop the central heating and the use of briquette. The burning of coal will be gradually canceled.

In that case then, the role of coal briquette machine is thus more important than ever before. All things equal, the finished coal briquettes of coal briquette machine will improve coal economization efficiency, the ratio up to 30% ~40%. They enjoy the features of long combustion time, less dust and coal ash and full burning and so on. The soot emissions can be reduced by more than 90%, the particulate emissions reduce 80%, sulfur dioxide emissions reduce more than 70%, nitrogen oxide emissions reduce 30% -50% or more and carcinogens emissions reduce 60% -90%.It is especially effective in saving energy and environmental protection and fully in line with industrial policy which is advocated by various countries in the world.

Application of Coal Briquette Machine

Coal Briquette Machine can be used to press pulverized coal, coking coal, aluminum, iron, iron powder, carbon powder, coal powder, slag, gypsum, tailings, sludge, kaolin, clay, activated carbon and various kinds of powder, waste and waste residue in refractory materials, power plant, metallurgy, chemical industry, energy, transportation, heat supply and other industries.

briquette machine

 The pressed materials of this pulverized coal briquetting machine is of energy conservation, environmental protection and easy transportation. It improves utilization rate of waste materials and has good economic and social benefits.

Finished product performance

1. Good adhesiveness, good fluidity and coal particles are easily dispersed

2. Less coal ash , does not affect slagging, does not reduce the fixed carbon

3. High molding rate , good hot and cold strength

4. low cost, easy to use, add a small amount

5. Wide range of application,

6. Environment protecting, no pollution, improve gas conversion rate

Finished product application areas

1. Residents living

2. Increase the temperature in winter

3. Boilers for civilian applications

4. Shower and catering

Model Roll diamter
Roll width
Total pressure
Main motor power
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
