Ball Mill

Ball Mill

The ball mill can grind any ore rock from ≤25 mm into 0.075 mm. Both Electric engine and Diesel engine are optional. Capacity : from 0.62t/h to 180 t/h flexible.

Advantages

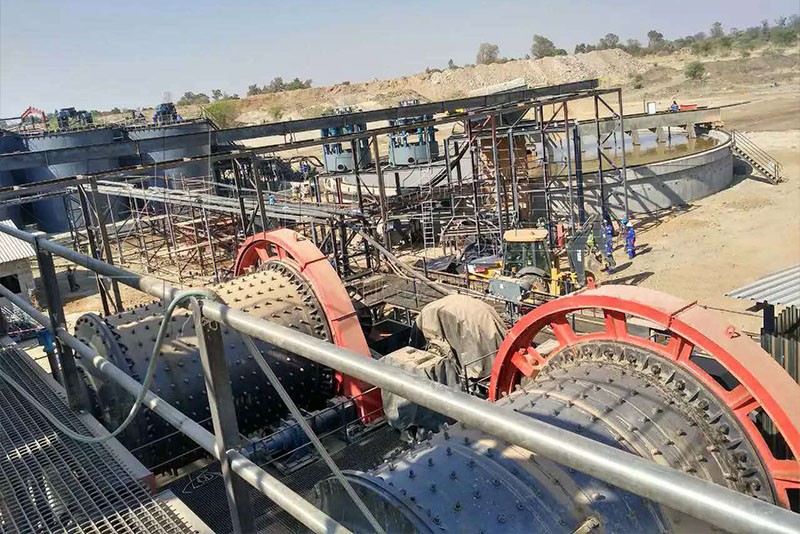

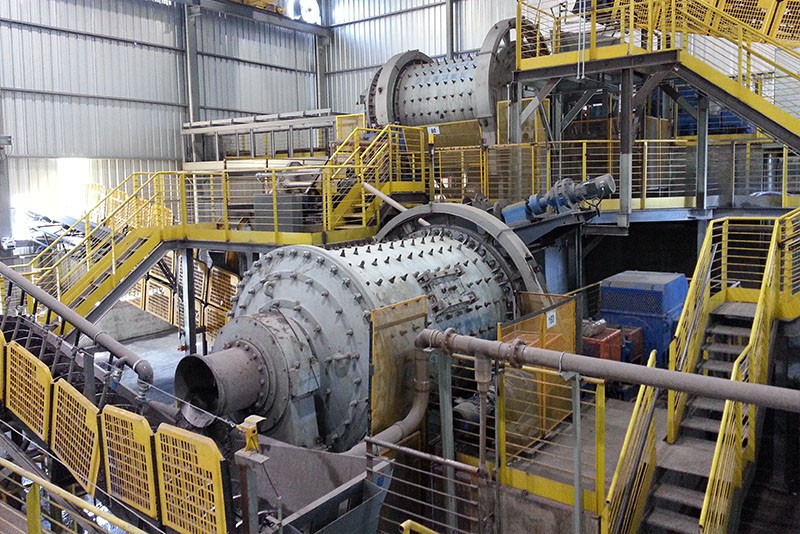

Ball mill is a kind of grinding equipment, which is generally used in ore dressing process. After having crushed by crusher, materials will be sent to ball mill for grinding.

Ball grinding mill can conduct wet or dry grinding, hence, it can be divided into wet ball mill and dry ball mill. According to different discharging methods, ball mill machines can also be divided into grate ball mill and overflow ball mill.

Ball Mill

ball mill

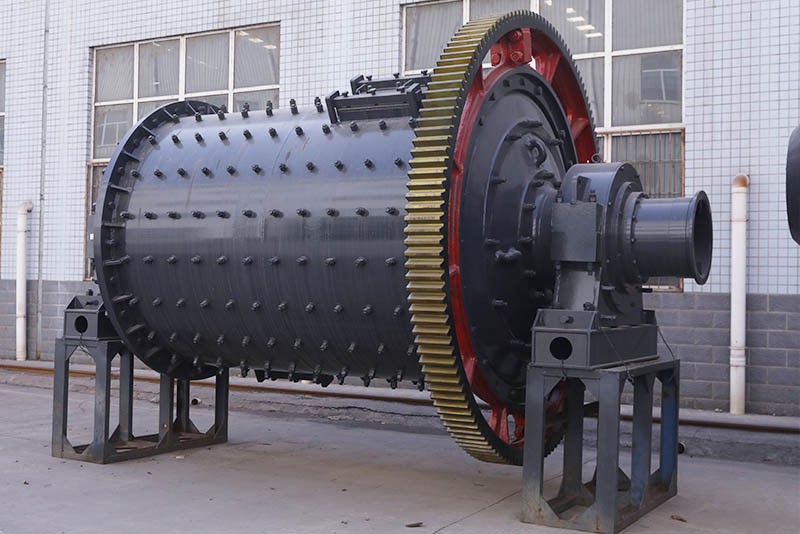

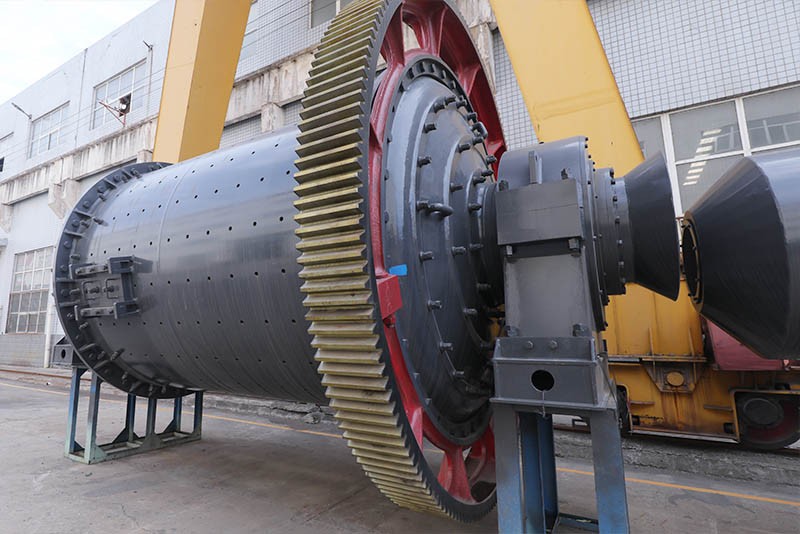

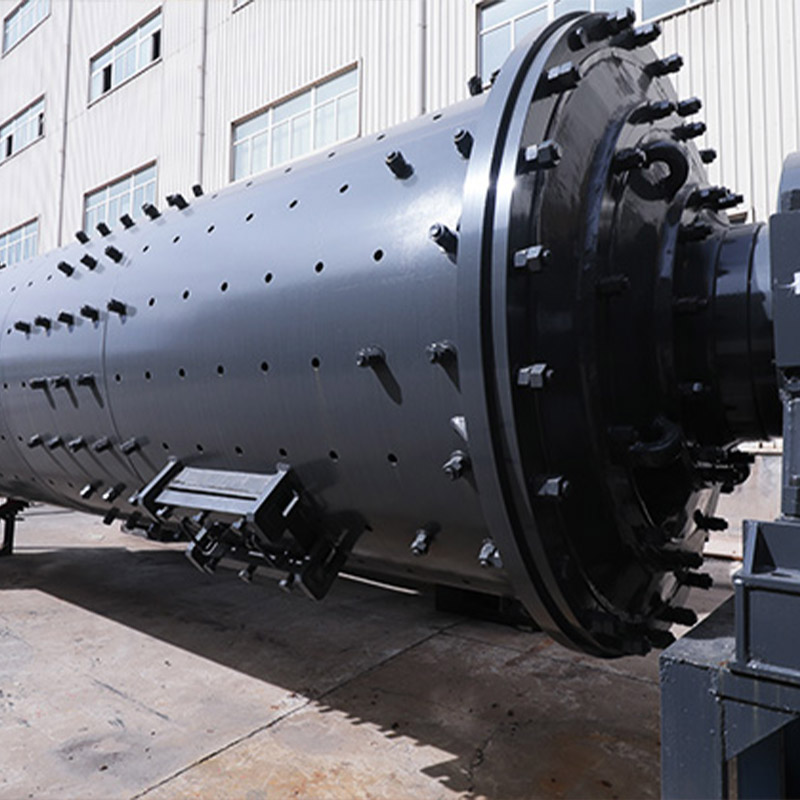

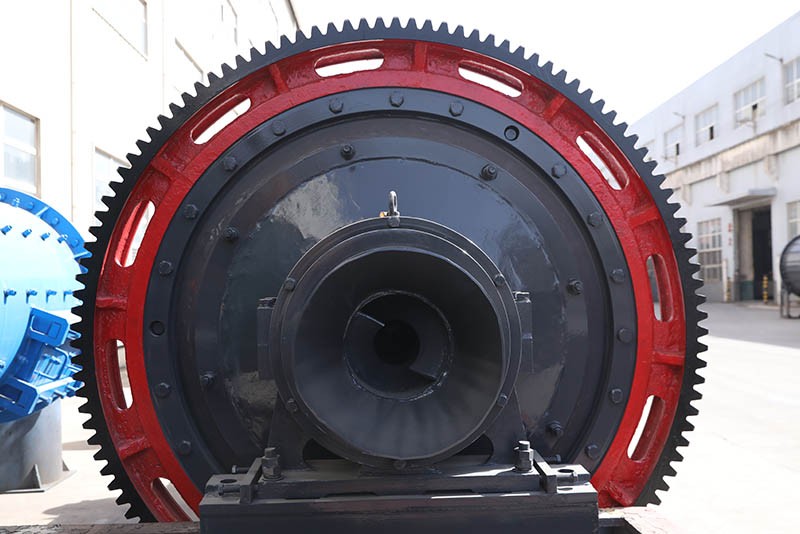

Ball mill grinder uses cylindrical structure. Inner wall of cylinder is installed lining board to prevent steel ball to smash the wall. Powder of ball mill grinder is provided by external motor. When it works, electromotor drives reducer to work. Reducer which is connected by two gears drives cylinder to rotate. Steel ball and ores to be ground that are inside the cylinder will be lift to a certain height and fall with the continuous rotation of cylinder, thus finishing ore grinding.

Ball grinder is widely used in cement, silicate product, new building material, refractory material, chemical fertilizer, ferrous and non-ferrous metal ore dressing, glass and ceramic industry.

Model Specifications

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
