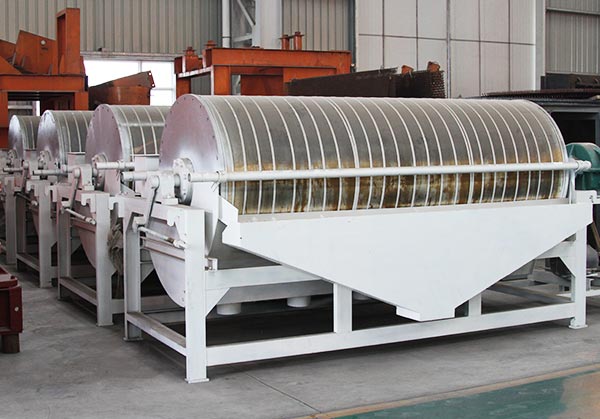

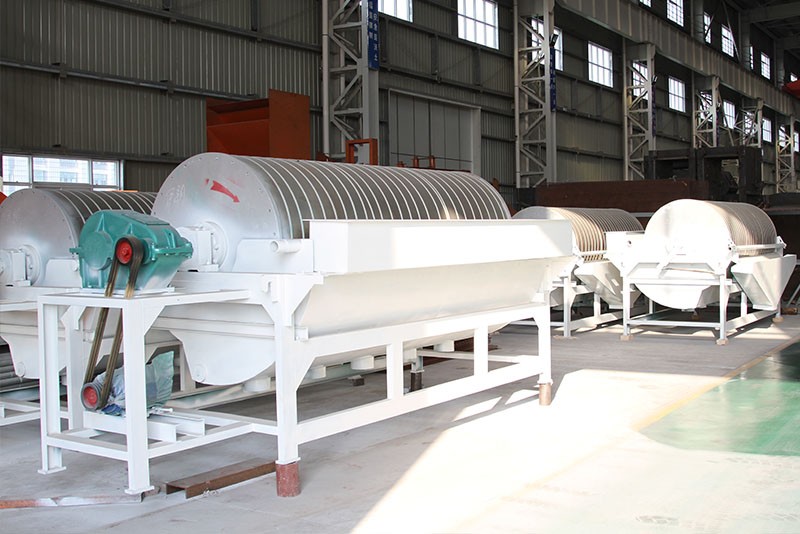

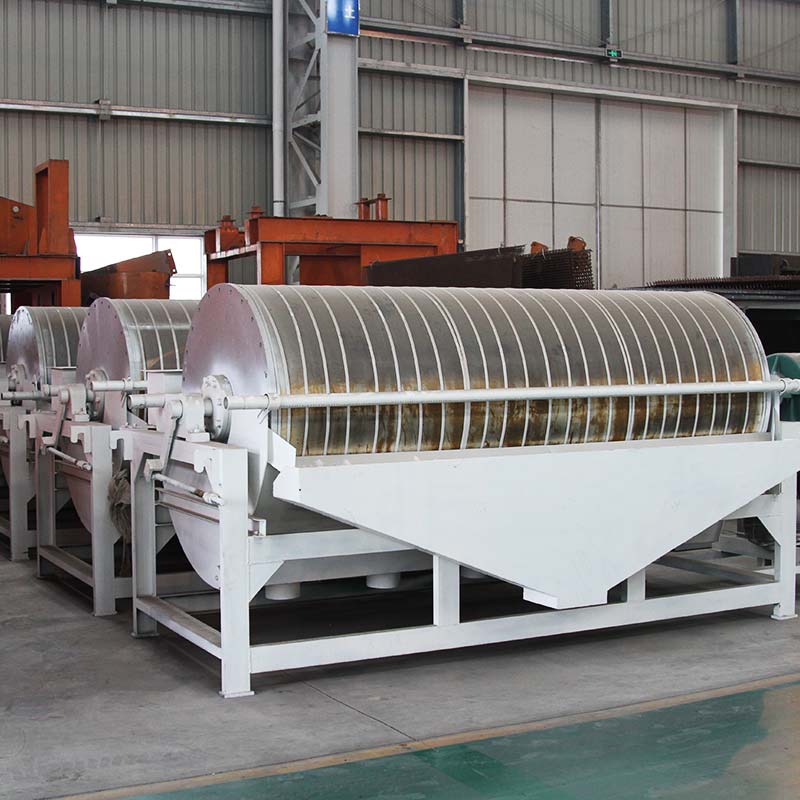

Magnetic Separator

Magnetic Separator

The feeding size of magnetic separator is 2-0 mm. Both Electric engine and Diesel engine are optional. Capacity : from 10t/h to 280t/h flexible.

Advantages

Iron ore is the most commonly seen ferrous metal. According to different types, iron ore can be divided into weak magnetic iron ore and strong magnetic iron ore. Magnetic separation is the main ore beneficiation process of iron ore. Hence, ore beneficiation of iron ore is realized by magnetic separation.

Range of Application of Iron Ore Magnetic Separator

1. Coarse and fine flotation of hematite and magnetite.

2. Magnetic separation of mixed iron ore that contains magnetism.

3. Magnetic separation of weak magnetic minerals removing elemental iron

4. Iron beneficiation from sand

5. Magnetic separation of strongly magnetic mineral

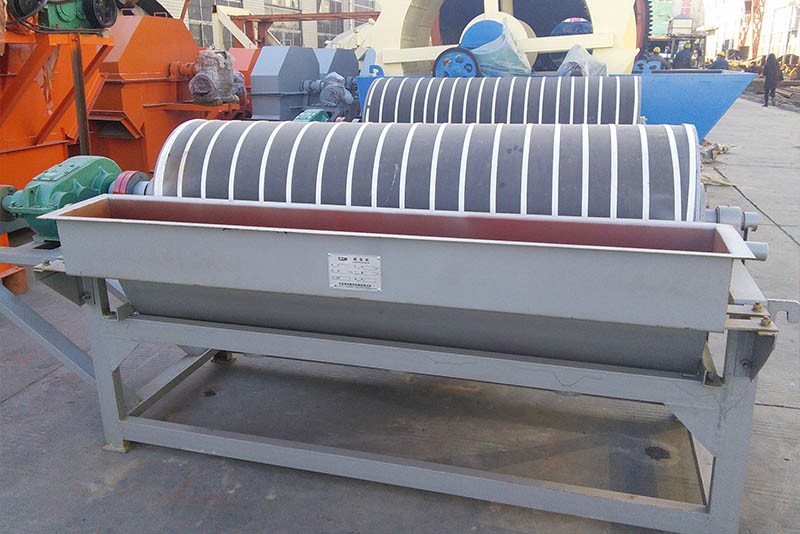

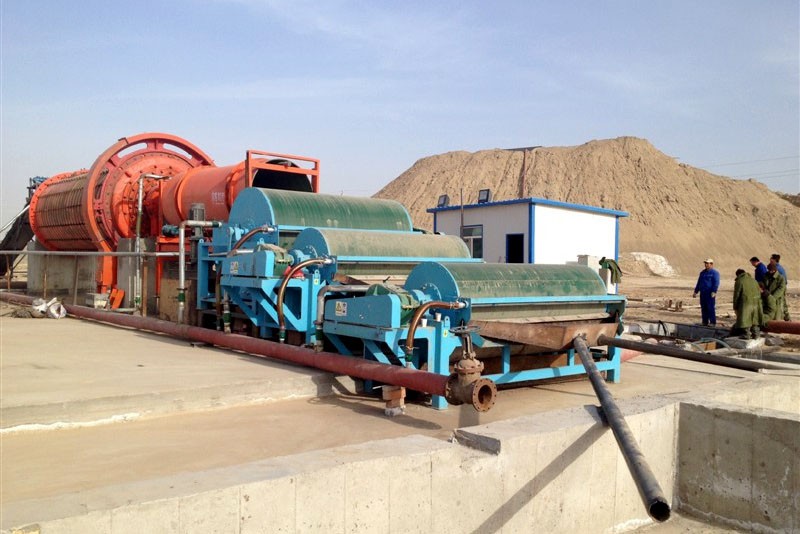

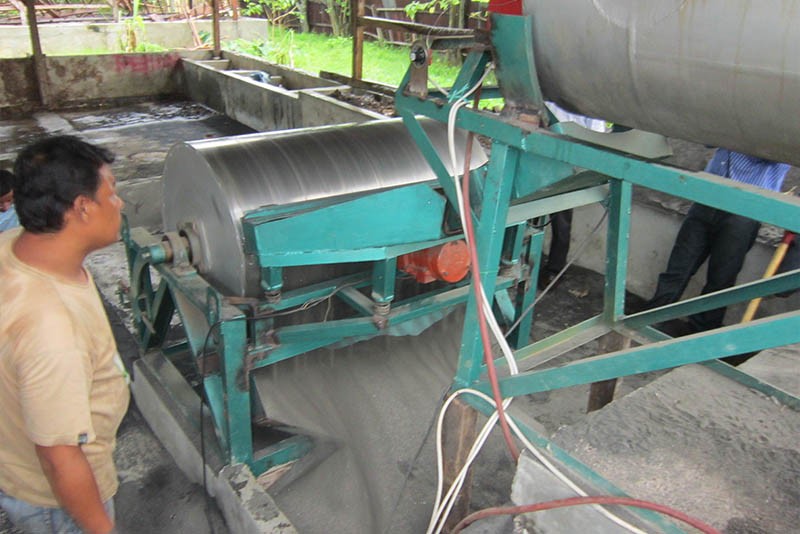

Wet Magnetic Separator

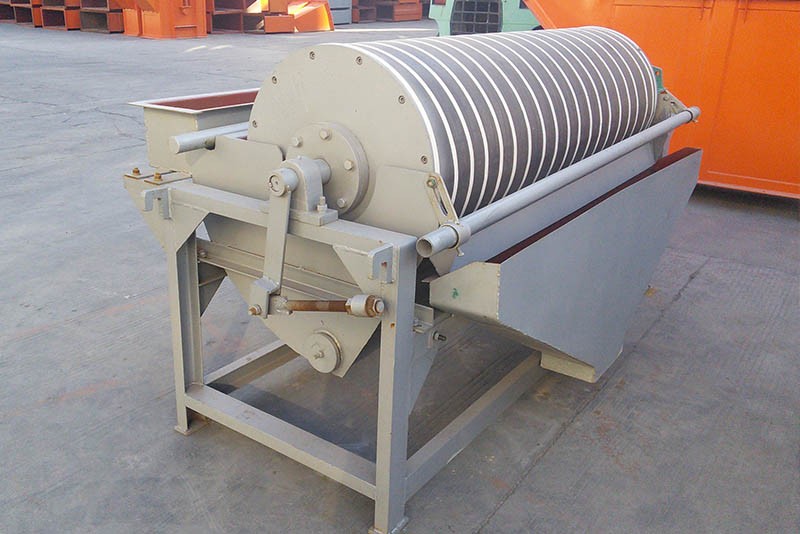

Effect of Magnetic Drum  Separator

Magnetic drum separator as important ore beneficiation equipment is widely used in ore dressing plant, which can be used iron removal work of non-magnetic materials. Magnetism of different magnetic separators is also different. Customers can choose different types of dry or wet magnetic separators according to purity of selected materials.

Our company has complete testing equipment,  China magnetic separator and ore dressing laboratory that can test common elements. We can carry our different ore dressing tests with different technological processes for common magnetic minerals. You can take your ores to visit our company and do ore testing directly.

Model Specifications

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
