Spiral Classifier

Spiral Classifier

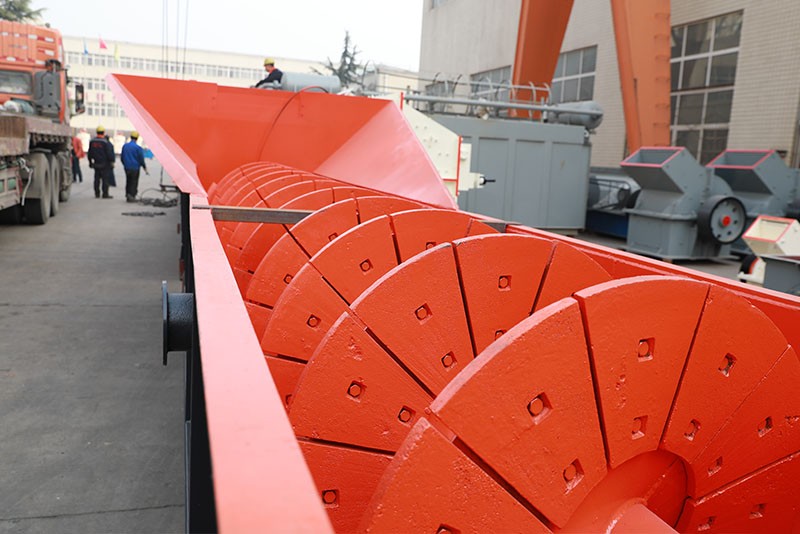

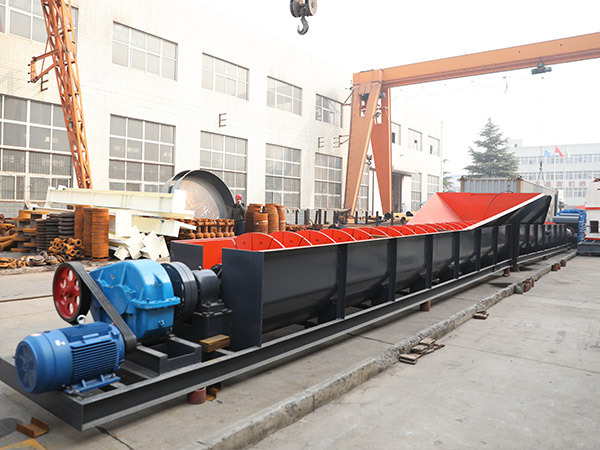

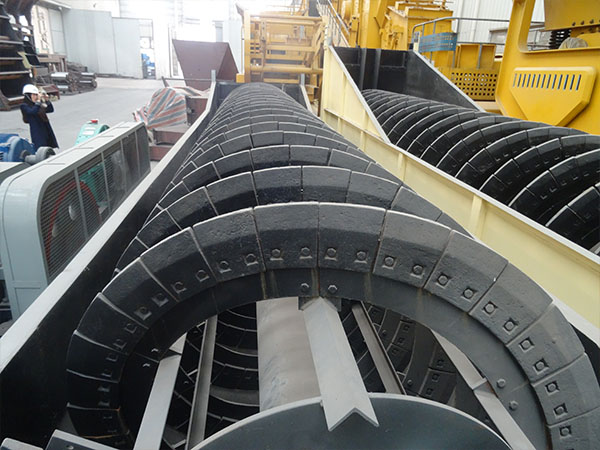

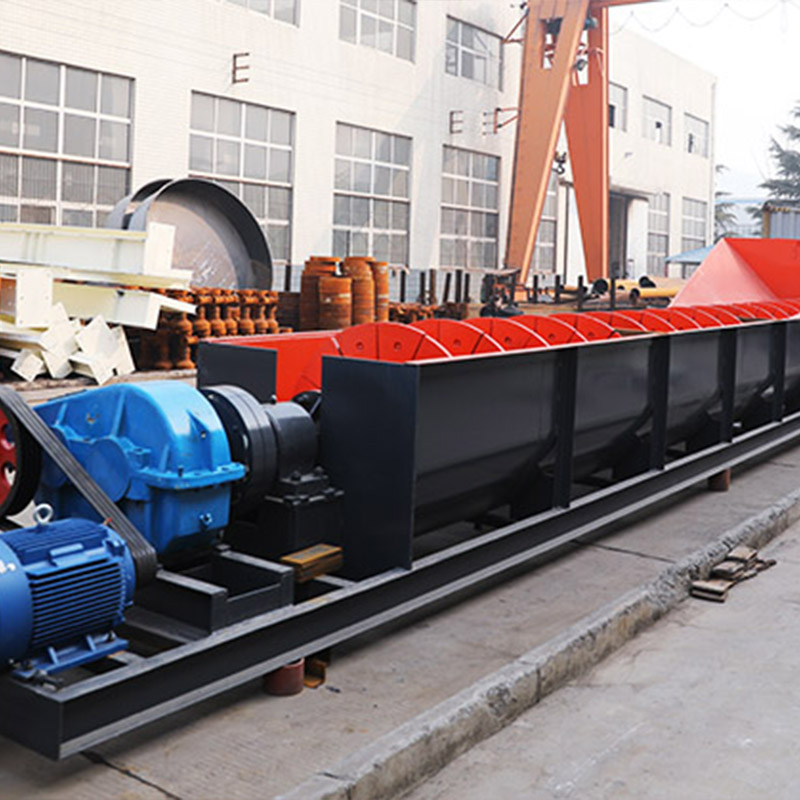

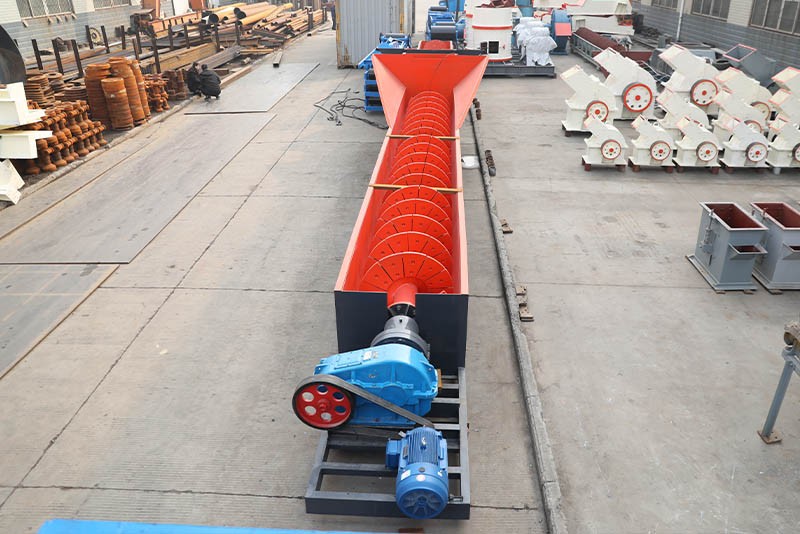

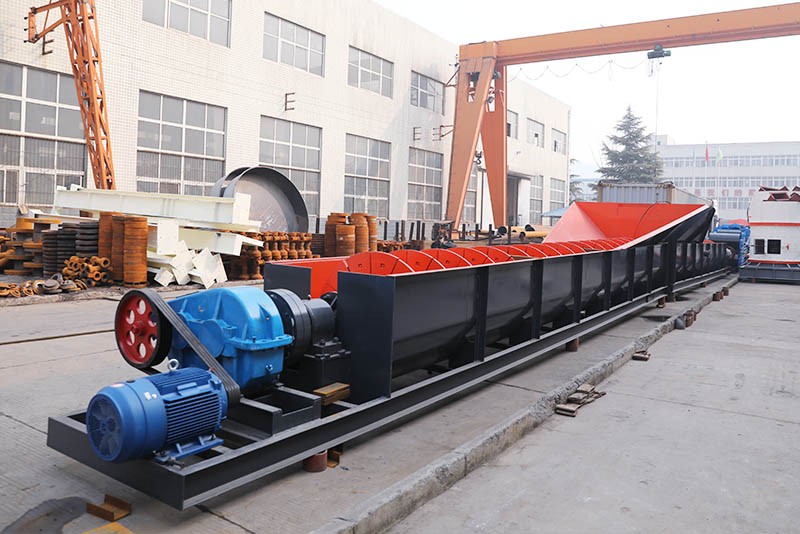

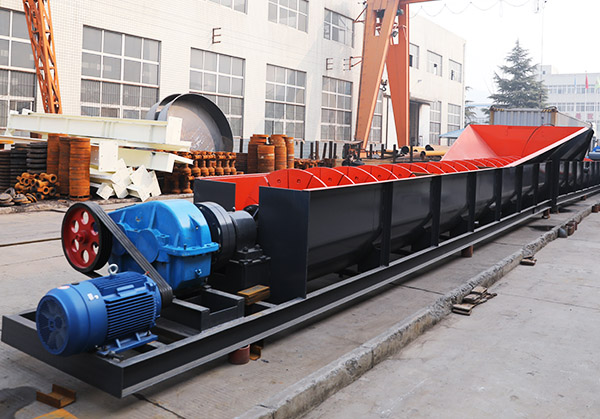

The spiral classifier is widely used to control material size from ball mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration and clean mud and water in washing mineral process. Capacity : for sand-return from 80t/d to 23300t/d flexible. for overflow from 20t/d to 1410t/d flexible.

Advantages

Spiral classifier is one kind of ore dressing equipment widely used in ore dressing plant, which is also the equipment relying on different deposition rate of solid particles with different proportion in liquid to carry out mechanical classification.

Working Principle of Spiral Separator

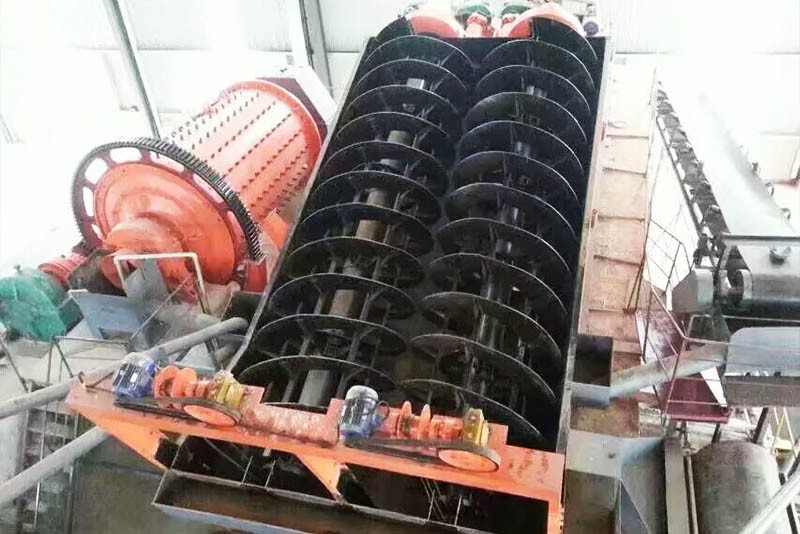

Spiral classifier is usually used to classify materials ground by ball mills. It can be divided into high weir single spiral and double-spiral classifier, submerged single spiral classifier and double-spiral classifier.

spiral separator

Range of Application of Spiral Classifier

Spiral classifier is generally used in closed cycle shunt to shunt mineral sands or in gravity ore dressing plant to separate mineral sand and fine sand. Additionally, it can also be used to classify granularity of ore pulp in metal ore dressing process or deslime and dewater in ore washing works.

Spiral Classifier

Model Specifications

Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 40 8 17091 6640 8680 84.8
