Quartz Powder Making Machine

Quartz Powder Making Machine

The quartz powder making machine can grind quartz from ≤35 mm into 3000 mesh. Both Electric engine and Diesel engine are optional Capacity: depended on finished material fineness

Advantages

Quartz sand is also called silicon powder, which is white, colorless or translucent with Mohs hardness of 7. It is a hard kind of silicate mineral with stable chemical property.

Quartz sand and quartz powder can be got through the grinding process of quartz stone. Quartz powder making machine can grind the quartz stone into 30-120 mesh quartz powder. Ultrafine mill grind quartz stone into 325-3000 mesh quartz powder.

Quartz Powder Making Machine

quartz powder grinding

Quartz Powder Grinding Process

Quartz stone ore–jaw crusher – small stone – wheel grinding mill (powder grinding mill) – sedimentation tank – dryer – dry sand – vibrating screen – iron removal – products – storage. Dry production process of quartz powder includes ordinary quartz powder and refined quartz powder, and the water production process is also divided into two types. Compared with the dry quartz powder, during the water production type of quartz powder, it produces less iron and the water can wash away the impurities, so its iron content and impurities are less than dry quartz powder. But because the water production process has high labor and material consumption, so the price is higher.

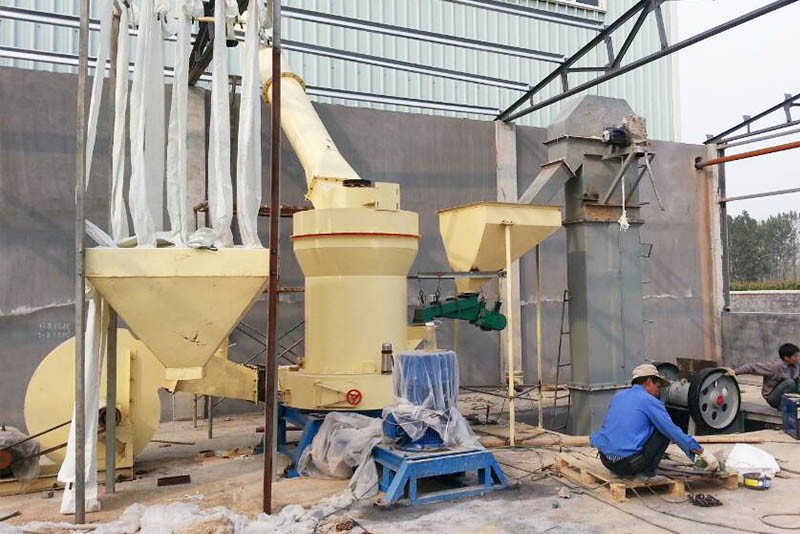

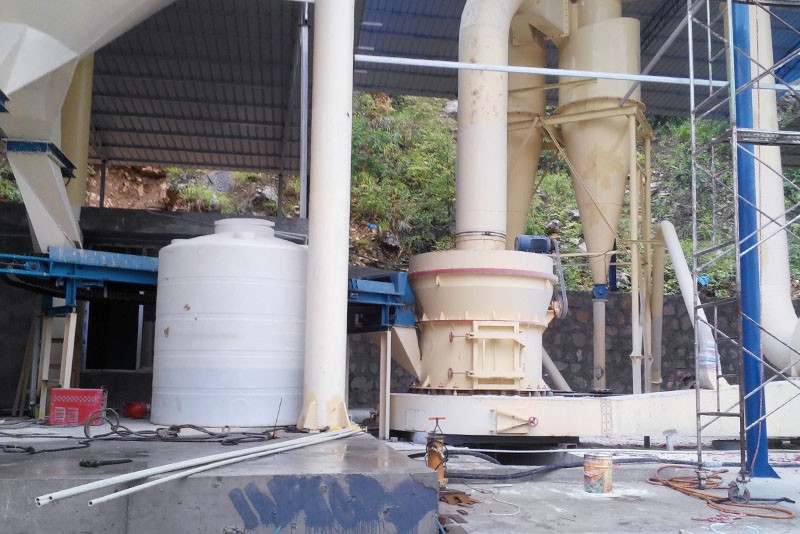

Quartz Powder Making Plant

Model Specifications

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.125-0.044 0.125-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor y315m-4-132 y280s-4-75
Fan Motor y315m-4-132 y250m-4-75
Analyzer Motor y160m-4-18.5 yct200-4B-7.5
