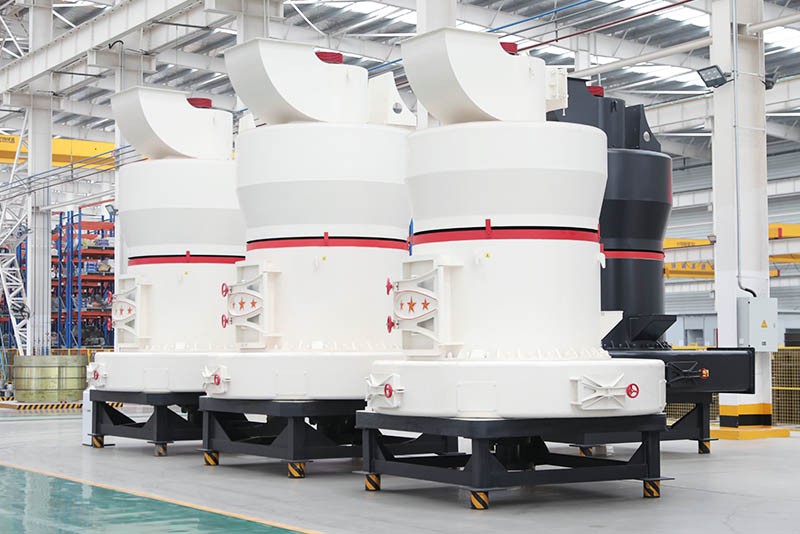

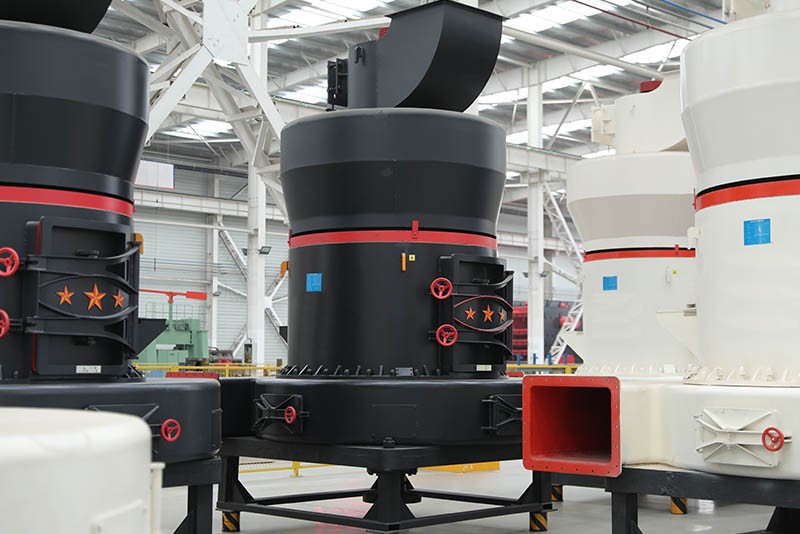

Tricyclic Medium-Speed Micro Powder Mill

Tricyclic Medium-Speed Micro Powder Mill

The tricyclic medium-speed micro powder mill can grind barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, bentonite, kaolin,gypsum from ≤10 mm into 3000 mesh. Both Electric engine and Diesel engine are optional. Capacity:from 500 kg/h to 5000 kg/h flexible.

Advantages

Fineness: 1400 to 3000 mesh
Production capacity: 600-10000 kg/h
Range of application: Coarse whiting, barite, wollastonite, kaolin, rare earth ore, hematite, talc, feldspar, slag, etc.

Tricyclic Medium-Speed Micro powder Mill is new product independently researched by our company, which is a kind of fine grinding equipment of domestic advanced dry ultrafine non-metallic mineral powder. Material crushing and powder classification are set in the same machine, but operate independently. It has such features as compact structure, adjustable fineness of 1400 to 3000 mesh, convenient maintenance, low energy consumption of per product, little investment and so on.

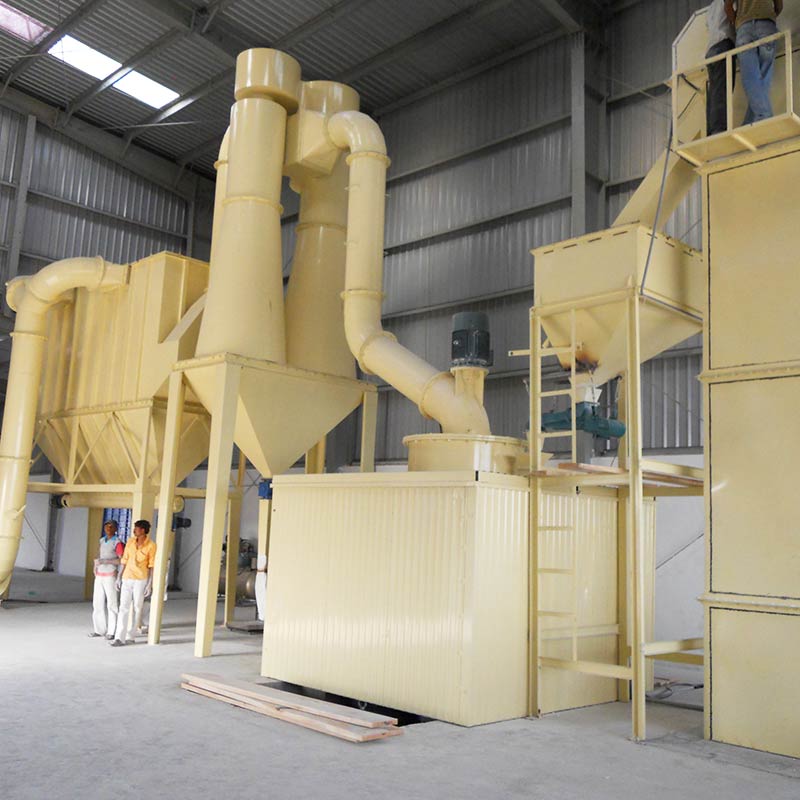

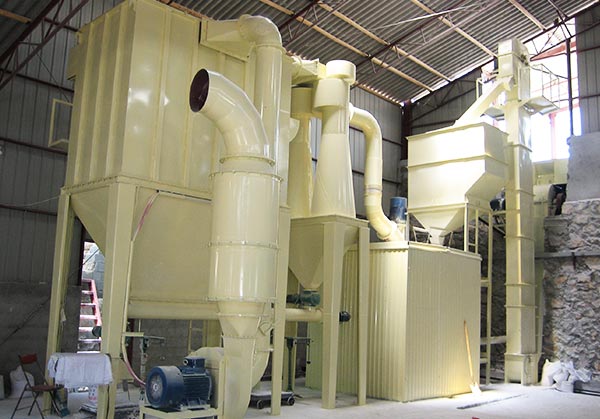

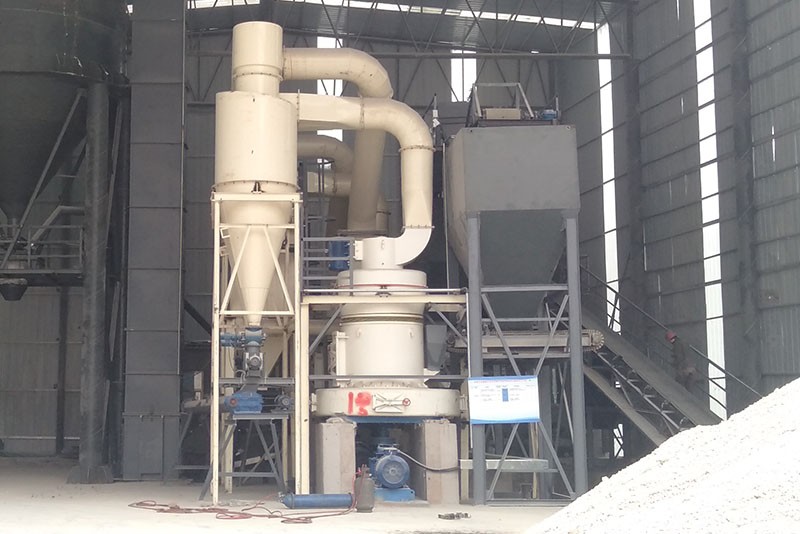

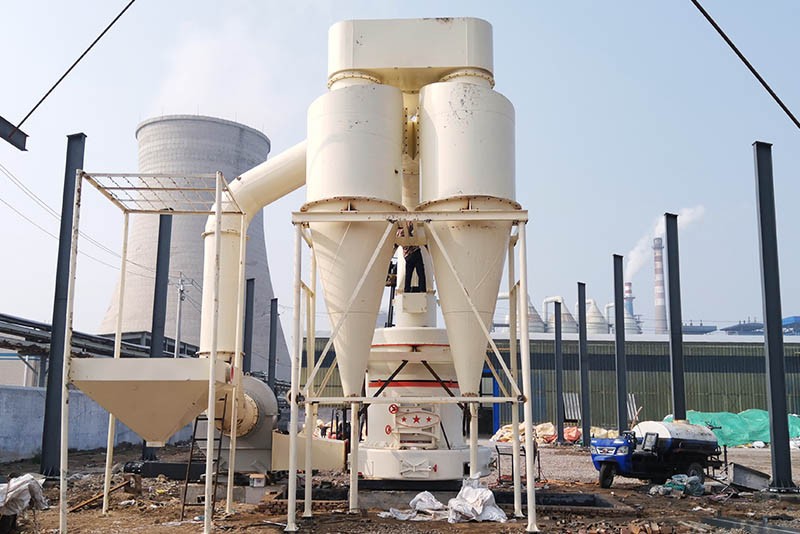

Material grinding, classification and manufacturing of finished products of Tricyclic Medium-Speed Micro powder Mill are conducted in closed system. Dusty gas are carried out dust removal process, which is no pollution. Hence, the Tricyclic Medium-Speed Micro powder Mill is ideal equipment of green environmental protection, which is suitable for ultrafine grinding of various brittle materials with below 5 level of Mohs hardness, such as coarse whiting, barite, wollastonite, kaolin, rare earths, hematite, talc, feldspar, slag, etc.

The Tricyclic Medium-Speed Micro powder Mill has the advantages of fine product and low energy consumption compared with traditional Raymond mill, which is ideal equipment of dry process production of coarse whiting ultrafine powder.

Model Specifications

Mesh Model FTMM-1021 FTMM-800
Output(kg/h) Power(kw/h) Output(kg/h) Power(kw/h)
400 600-7000 22 4000-5000 27
800 3000-3500 45 1800-2100 60
1250 2000-2500 70 1200-1500 95
1500 1800-2000 73 1000-1200 110
1800 1500-1800 90 800-10000 136
2500 1200-1300 120 600-800 175
3000 900-1100 145 500-700 200
