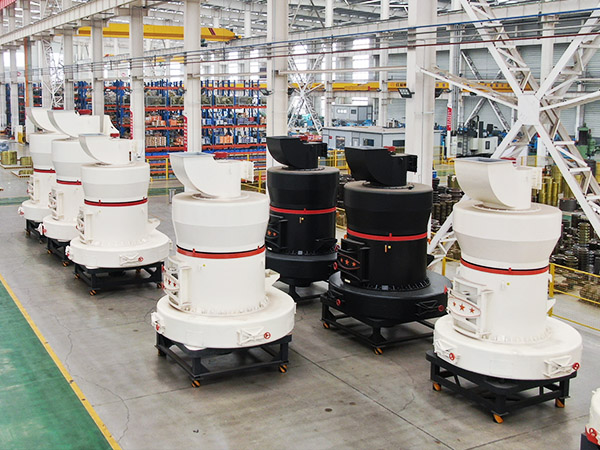

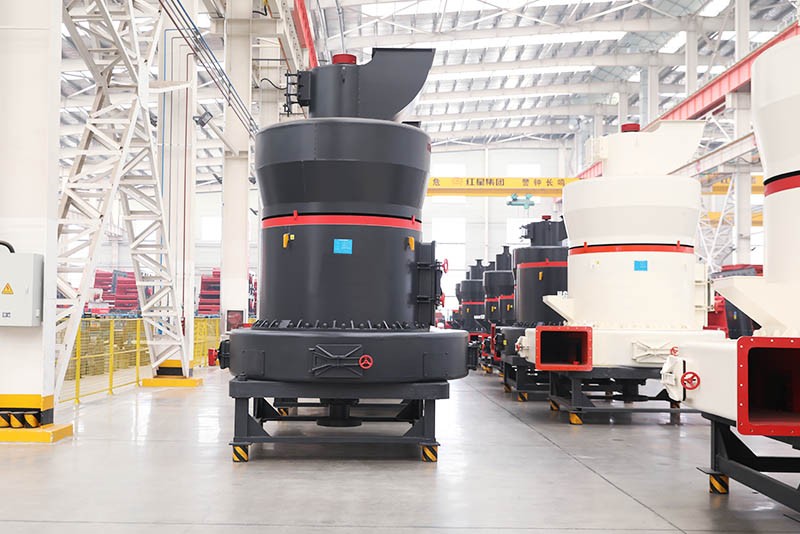

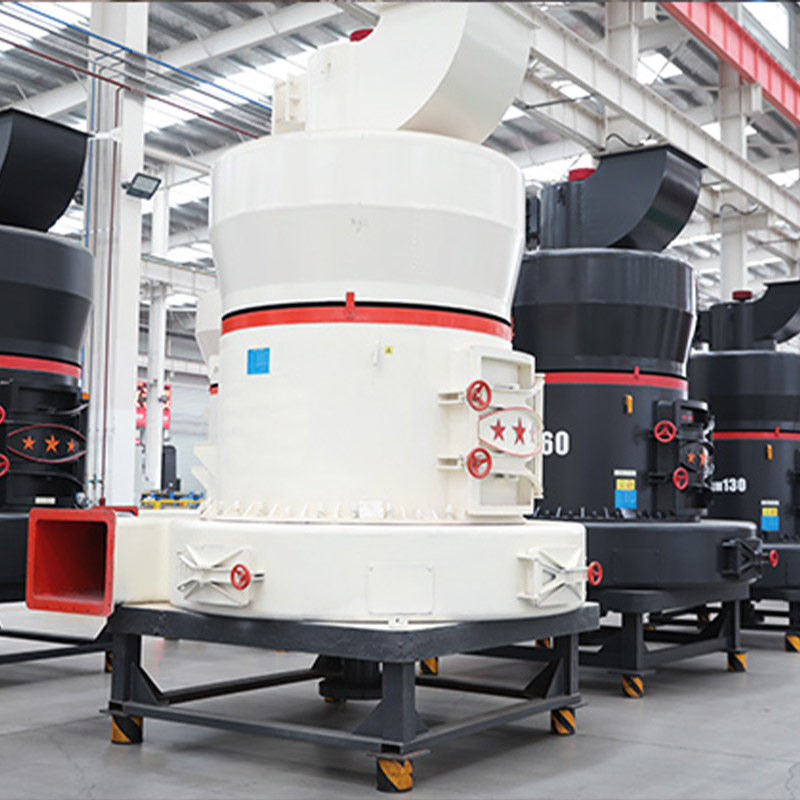

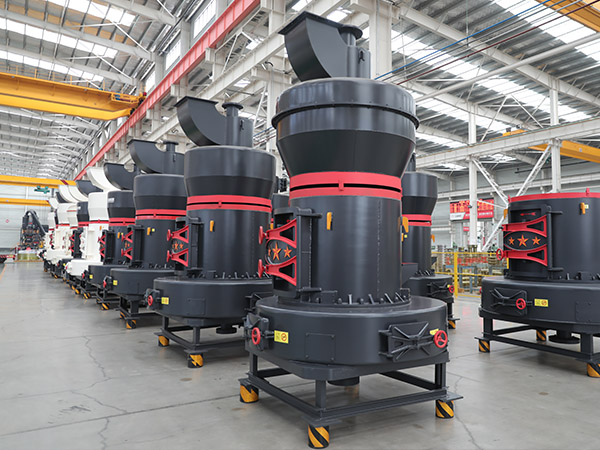

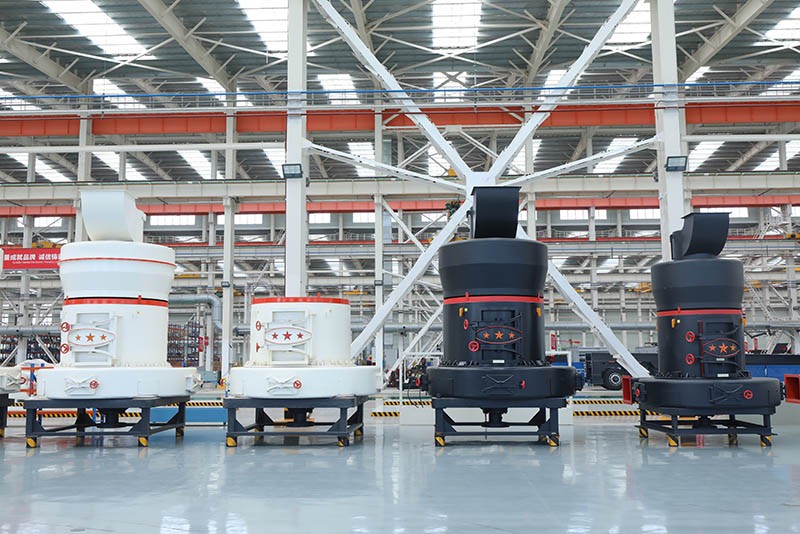

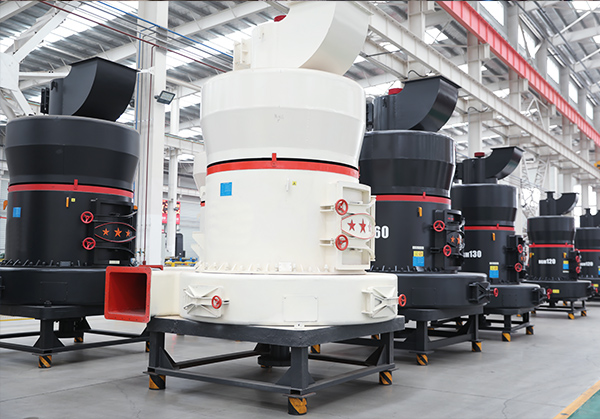

High Pressure Micro Powder Mill

High Pressure Micro Powder Mill

The high-pressure micro powder mill can grind barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, bentonite, kaolin, gypsum from ≤25 mm into 0.033 mm. Both Electric engine and Diesel engine are optional. Capacity: depended on finished material fineness

Advantages

Feeding granularity: ≤15-≤25 mm
Output in one shift: 0.2-21 t/h

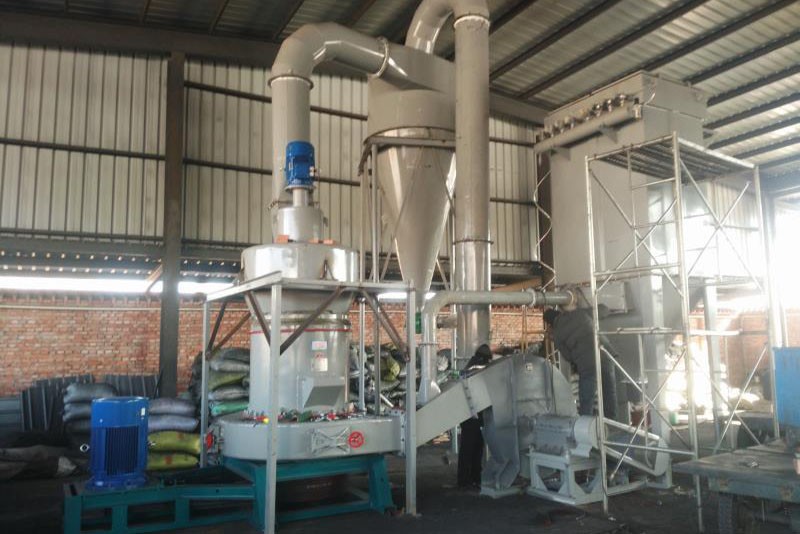

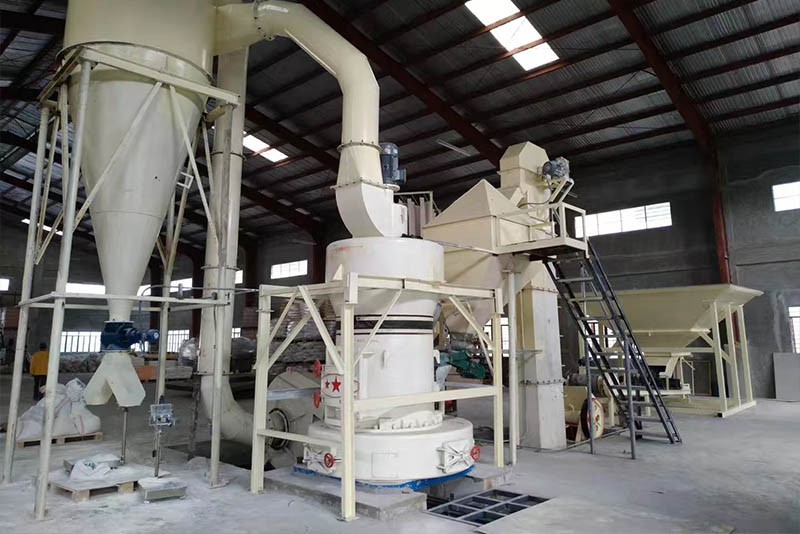

Constituent parts: high pressure micro powder mill is mainly composed of host, air blower, super fineness analyzer, cyclone powder collector of finished product, bag dust collector, pipeline of connecting duct, etc.

High pressure micro powder mill is mainly composed of host, air blower, super fineness analyzer, cyclone powder collector of finished product, bag dust collector, pipeline of connecting duct, etc. According to demand of customers, it can also be equipped with elevator, storage silo, electrical control cabinet, powder feeding machine, crusher, and other auxiliary equipment.

Raymond mill

High Pressure Micro Powder Mill

Characteristics of High Pressure Micro Powder Mill

1. High pressure micro powder mill has wider range of application compared with jet mill.

2. Compared with other similar grinding machines, grinding pressure of roller to materials of high pressure micro powder mill has been improved by 800-1200 Kg under the action of high pressure spring.

3. Energy conservation. Under the same yield and fineness, system energy consumption is only one third of jet mill.

4. Small investment and high interest. Under the same yield and fineness, price of high pressure micro powder mill is only an eighth of jet mill.

5. Large feeding granularity. Average particle size of disposable discharge can reach 6.5 um of ultrafine powder.

6. High pressure micro powder making machine has superimposed multistage seal grinding device which has good sealed performance.

7. Dust removal effect of high pressure micro powder mill can completely meet the national dust emission standard

Model Specifications

  Parameter Model Micropowder93 Micropowder92 Micropowder87 Micropowder76 Micropowder66
Feeding size(mm) ≤25 ≤25 ≤20 ≤20 ≤15
Size of finished product(mm) 0.125-0.010 0.125-0.033 0.125-0.010 0.125-0.033 0.125-0.010
Shift output of different material fineness(t) 0.8-12 0.6-10 0.4-8 0.3-6 0.2-4
Rotate speed of pulverizing ring(r/min) 140 148 160 170 180
Diameter of pulverizing ring(mm) 1006 973 907.5 850 725
Diameter of pulverizing roller(mm) 300 300 270 250 210
Height of pulverizing roller(mm) 160 160 150 150 150
Main Motor Y225M-8-30 Y225M-8-22 Y225M-8-22 Y225S-8-18.5 Y225M-8-15
Fan Motor Y180M-2-22 Y180L-4-22 Y160L-4-18.5 Y160L-4-15 Y160L-4-11
Analyzer Motor YCT180M-4A-4 YCT180M-4A-4 YCT180M-4A-4 YCT160-4B-3 YCT160-4B-3
