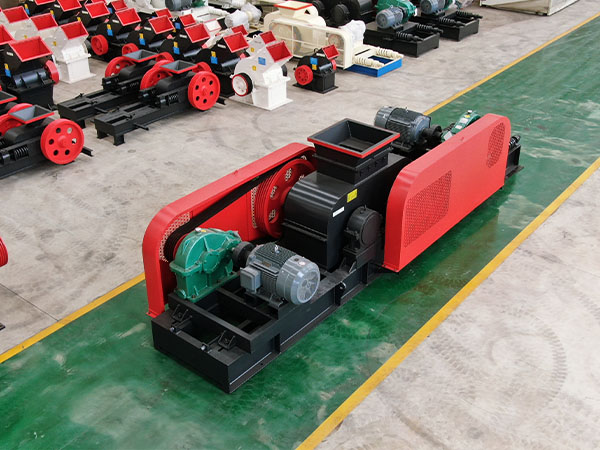

Roll Crusher

Roll Crusher

The double roll crusher can be used for medium and fine crushing of ores and stone with medium and low hardness and compressive strength not more than 120-150Mpa. Both Electric engine and Diesel engine are optional. Capacity : from 30t/h to 300 t/h flexible.

Advantages

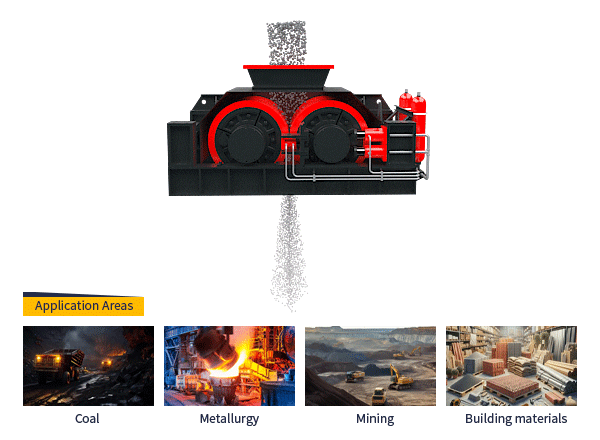

Double Roll crusher is one kind of roll crushers, which mainly uses two relatively rotating crushing rollers to crush materials. It is a kind of small crushing equipment with simple structure. Crushing rollers are main crushing parts. Picture of crushing rollers is as follows.

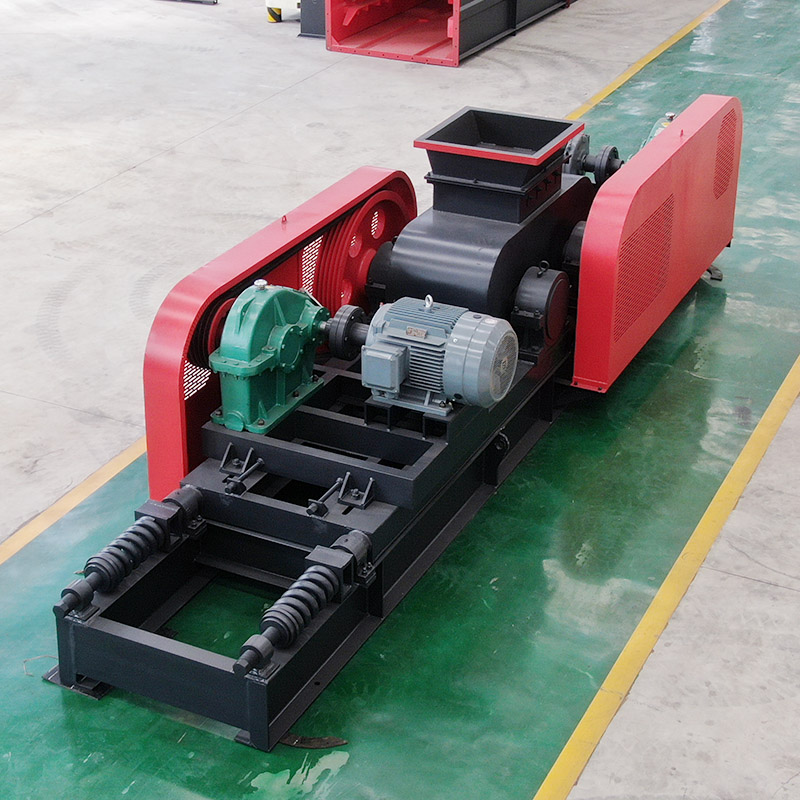

Roll crusher is mainly composed of roller, roller support bearing, hold-down device, adjustment device, driving device and so on. when discharging materials, we can realize adjustment of discharging granularity by means of adjusting distance between the two rollers.

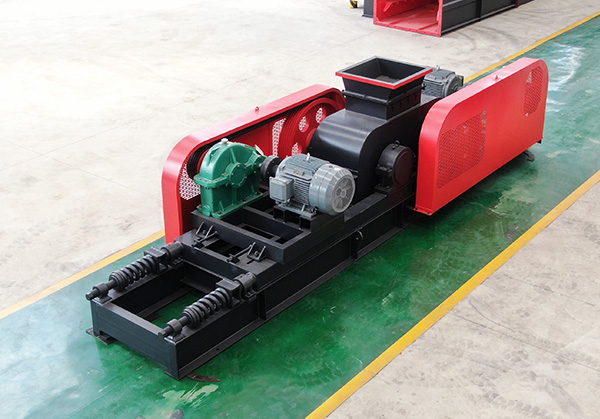

roll crusher

Double roll crusher is a new kind of roll crusher improved on the basis of single roll crusher. The similar equipment is toothed roll crusher. Toothed roll crusher has dentate spine on the crushing rollers. Customers can purchase crushing equipment according to actual situation.

Roll Crusher

Model Specifications

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф610 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
Total weight(t) 2.2 5.9 9.8 13.5 17.2 28.5 39.3
