Sand Maker

Sand Maker

The sand maker can crush river pebble, basalt, quartz, iron ore, and granite etc from 60 mm into 30Mesh. Both electric engine and diesel engine are optional. Capacity from 45 th to 725 th flexible.

Advantages

Sand Maker Video:

FTM Sand maker was produced by Fote heavy machinery was suitable for crushing and shaping soft, medium and extremely hard materials. And it is widely used in cement, refractory materials, glass raw materials, mechanism building sand and other industries. FTM sand maker has higher yield and efficiency in crushing silicon carbide, corundum, sintered bauxite, hard materials, extra hard and abrasion resistance materials compared with other types of crushers. Besides, sand maker is also called VSI sand maker and sand making equipment.

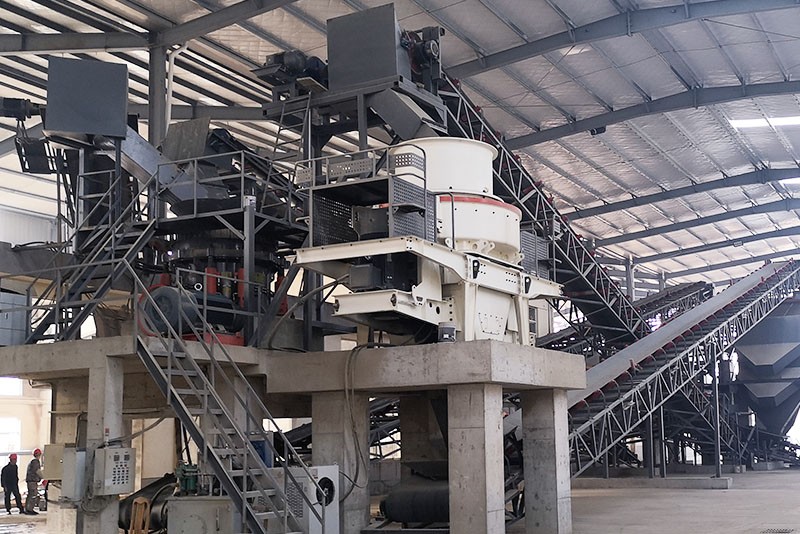

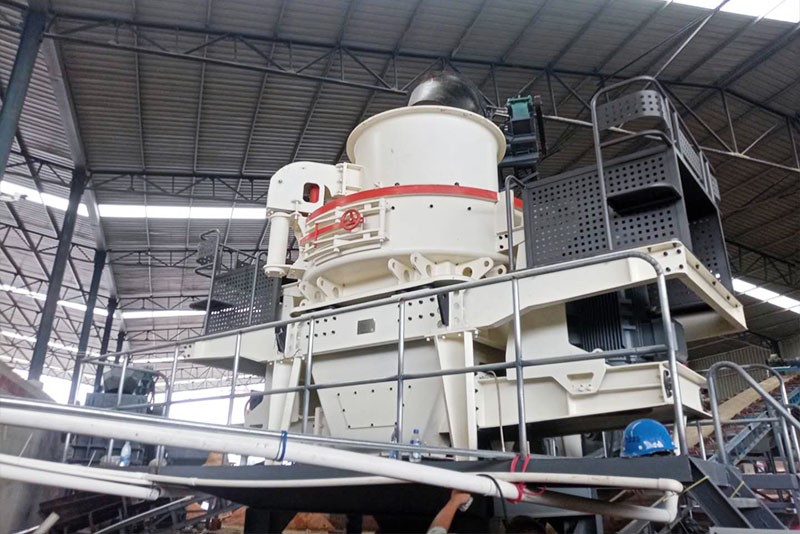

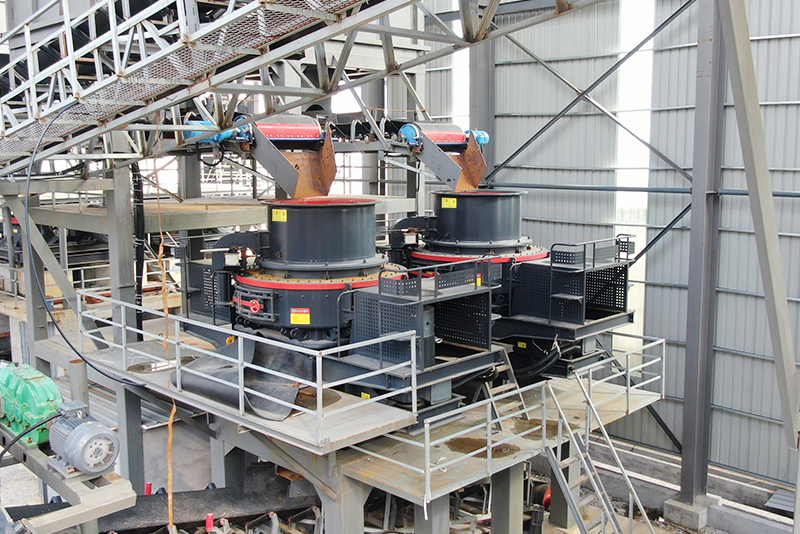

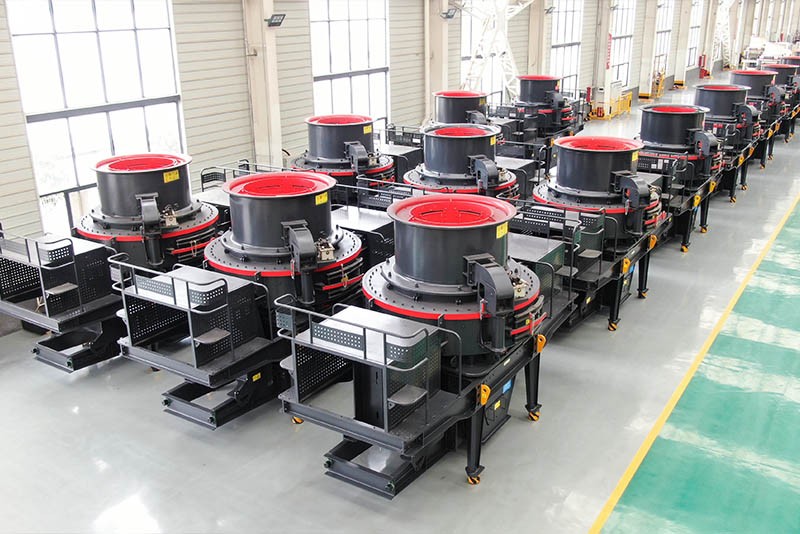

 Sand Maker Work Site

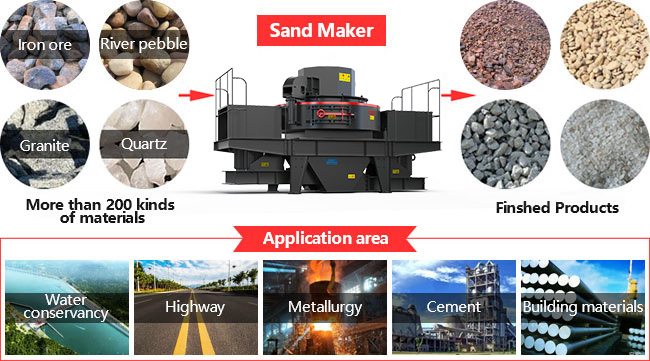

Sand Maker Application

FTM VSI Sand maker is ideal manufacturing equipment of artificial sand, asphalt concrete and concrete aggregates in engineering field, which is widely used in fine crushing process before grinding. FTM Sand maker can reduce grinding load with high cost.

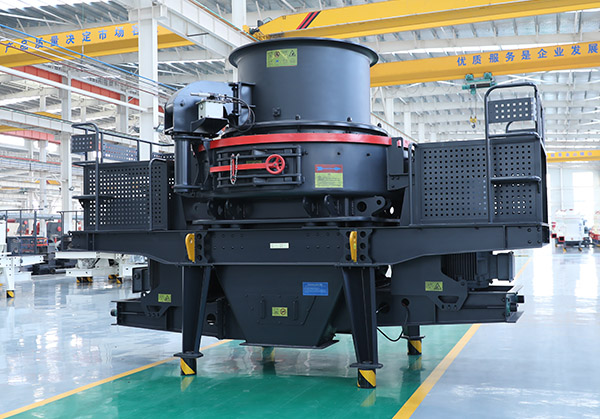

Sand Maker

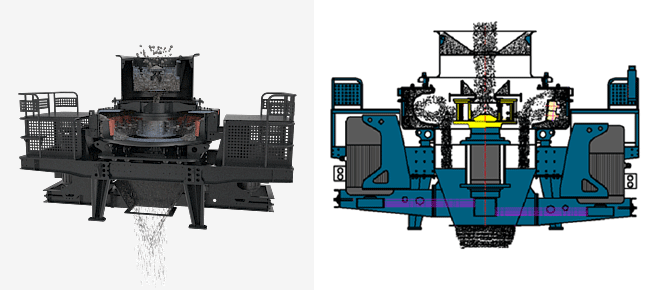

Workflow of Sand Maker

Firstly raw materials was  fed into sand maker by the feed hopper and at the same time they are divided to two parts. one of them enter the high speed spinning impellor through the distributor and the accelerated speed can be a hundred times of the gravitational acceleration.

Second Then the materials are thrown out from three runners at the speed of 60-70 m/s and impact the falling materials from the distributor.

Thirdly the materials come to the lining of the inner cavity and get bounced by the material liner to the upper end of the whirling motion cavity.

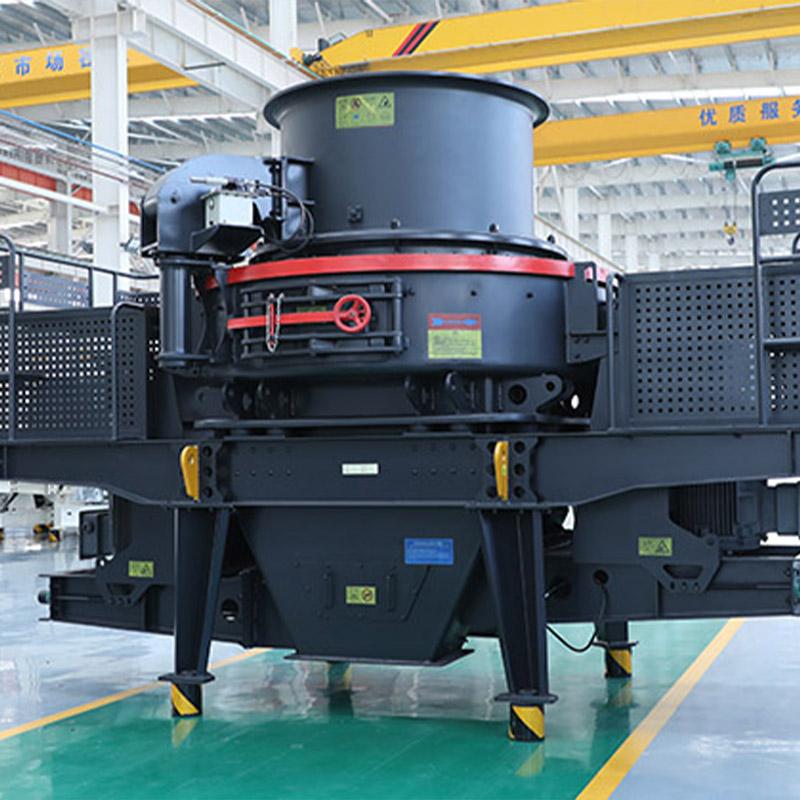

Sand Maker

Then the materials change the direction to move down and they cast from the impellor form a continuous material curtain. During this case, the materials would go through two or more times of impacting and grinding processes.The crushed materials are discharged from the bottom hole of the sand making machine.And then through a closed circuit with the cycle screening system, the sand maker can handle the materials up to 20 meshes within three circulations.  In the whole crushing process, the materials hit each other without touching the metal components directly.

FTM Sand making machine with superior wear resistance can also be used in high abrasion resistance and disintegration of secondary crushing production. In addition, due to zero production pollution, sand making equipment can well adapt to glass, quartz sand and other high purity material production. Within production capacity of 10-500t/h, sand making production can almost meet any production requirements.

If you want full details of our sand maker, please don't hesitate to chat with our online service, or you can also leave a message to us, our engineers will reply you with 24 hours!

Model Specifications

Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(kg)
FTM-06 35 37-55 2000-3000 12-30 2500×1620×2600 5600
FTM-07 45 55-75 1500-2500 25-55 2700×1760×2800 7600
FTM-09 50 110-150 1200-2000 55-100 3900×2000×3070 12600
FTM-10 60 150-180 1000-1700 100-160 4600×2350×3450 17300
