Mobile Jaw Crusher

Mobile Jaw Crusher

The mobile jaw crusher consists of pe jaw crusher, vibrating feeder and belt conveyor. Both Electric engine and Diesel engine are optional. Capacity : from 85t/h to 650 t/h flexible.


Mobile jaw crusher is composed of jaw crusher, feeding equipment and screening equipment. The whole set of this type mobile crusher is installed on mobile tyre platform, which can flexibly arrange the required location of machines.

Working Principle of Mobile Jaw Crusher

After having evenly sent to jaw crusher via vibrating feeder, the primarily crushed materials are sent to finished product stock pile through belt conveyor or screened by circular vibrating screen. Large pieces of materials will return for again crushing. Circular vibrating screen can be configured according to actual demand.

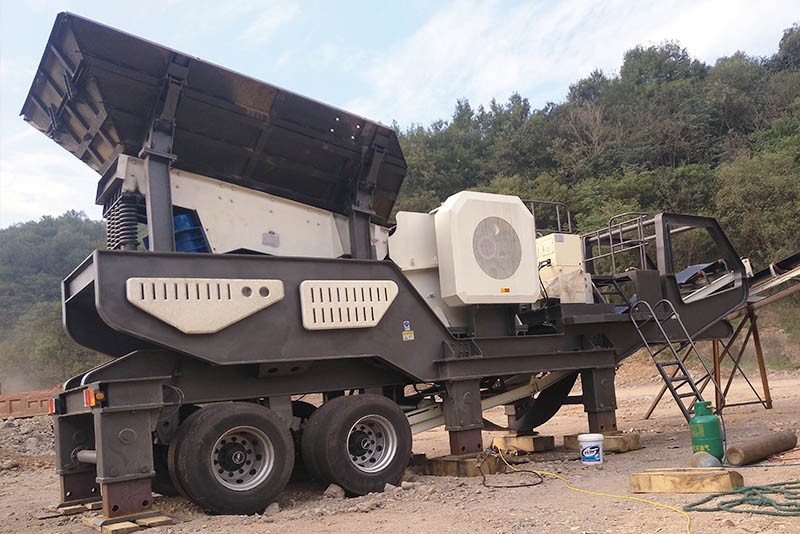

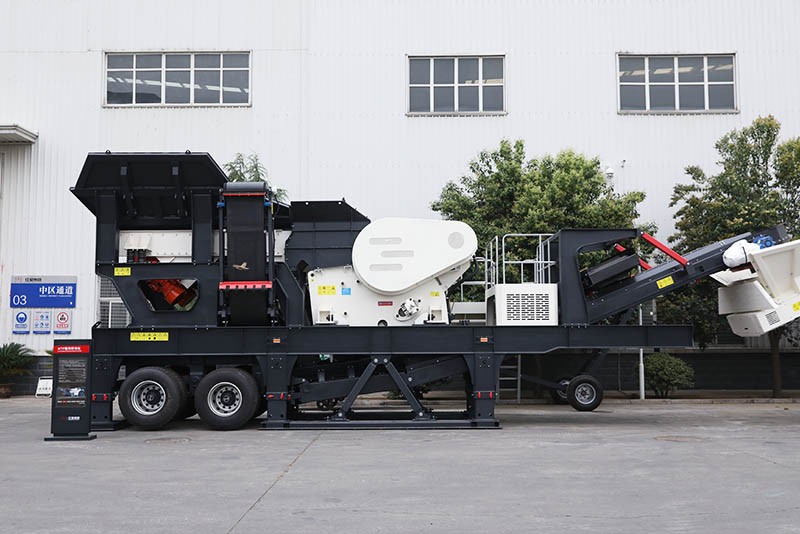

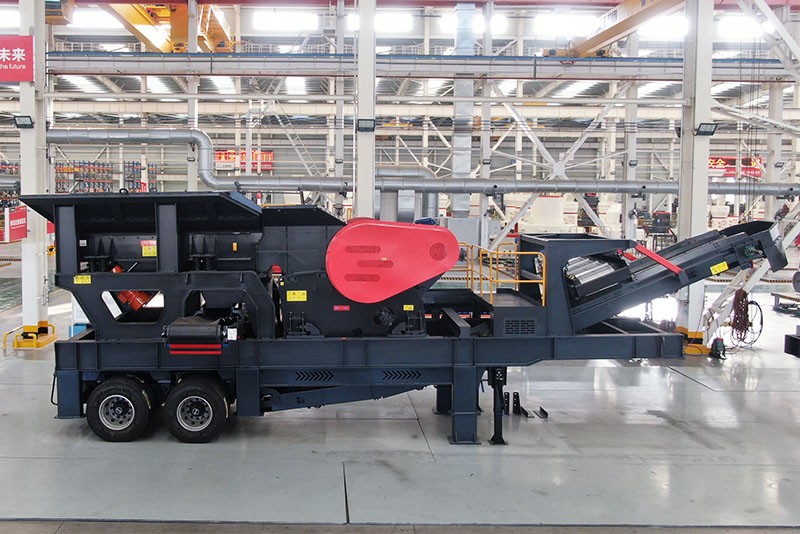

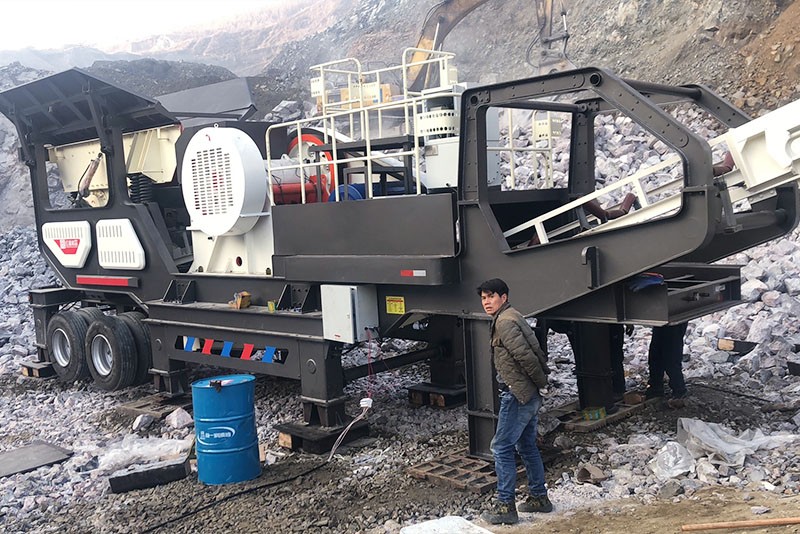

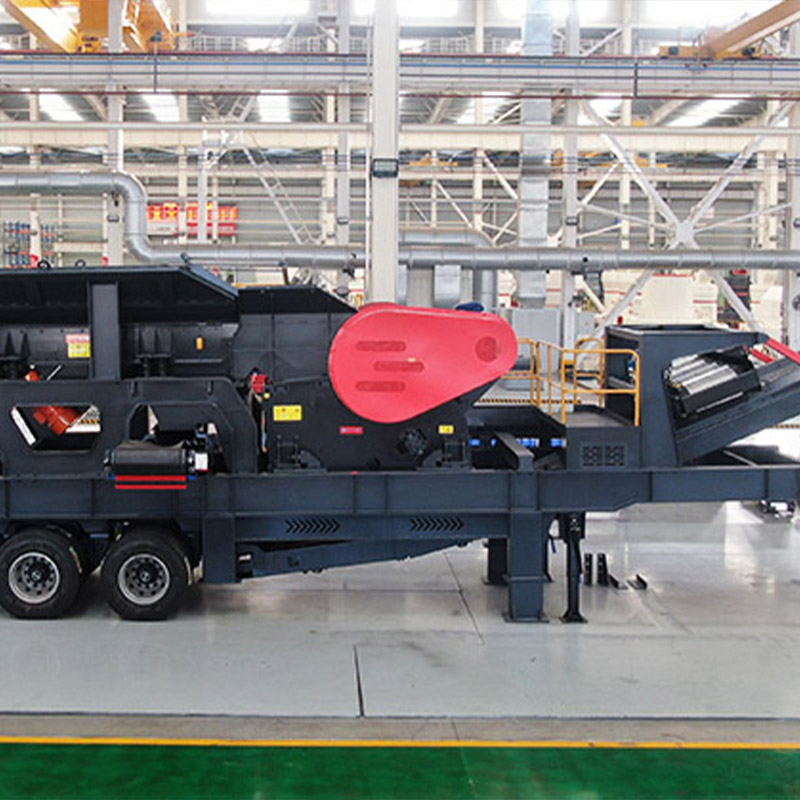

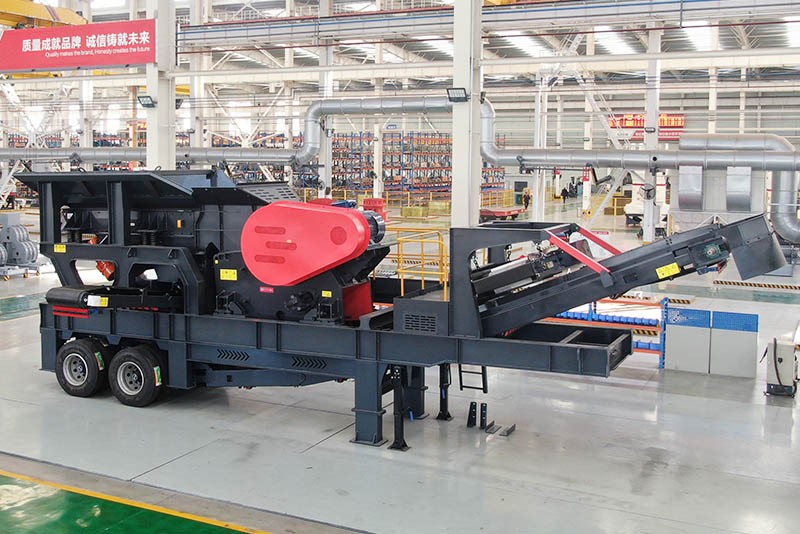

Wheel Mobile Jaw Crusher

Wheel-mounted mobile jaw crusher is widely used in mining, coal mine and waste disposal industry, which can process a lot of materials, such as cobble, limestone, granite and so on. Portable jaw crusher can be combined with two-stage crushing and screening system (coarse crushing and fine crushing) or three-stage crushing and screening system (coarse crushing, medium crushing and fine crushing). At the same time, it can also be run independently, which has great flexibility.

Model Specifications

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
