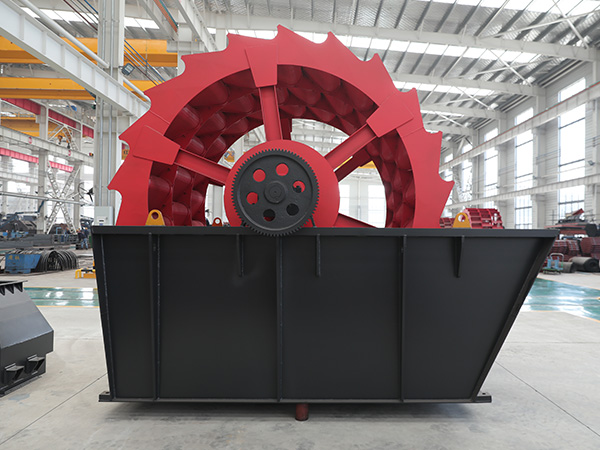

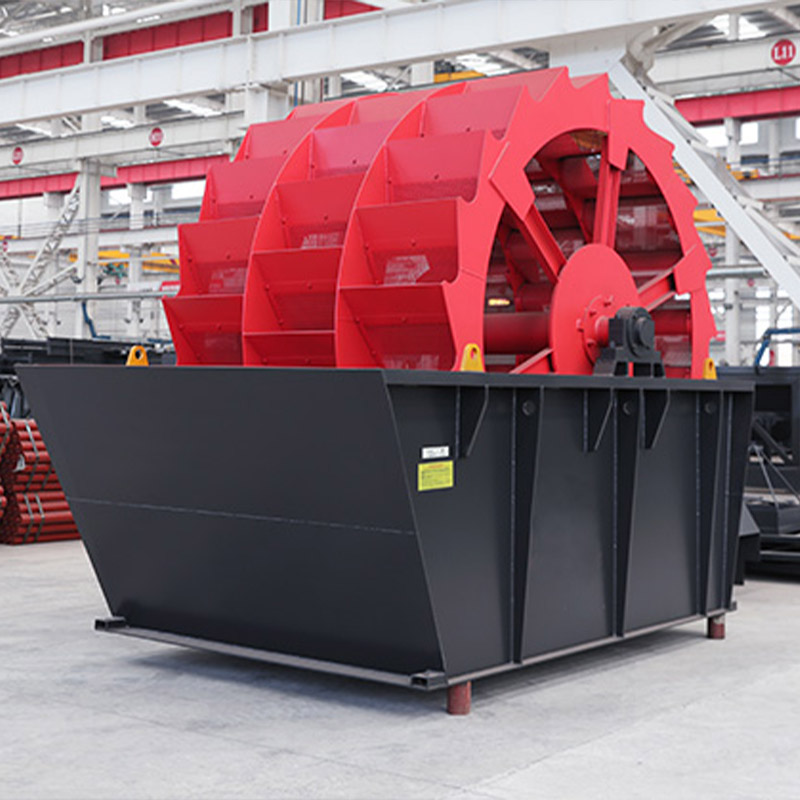

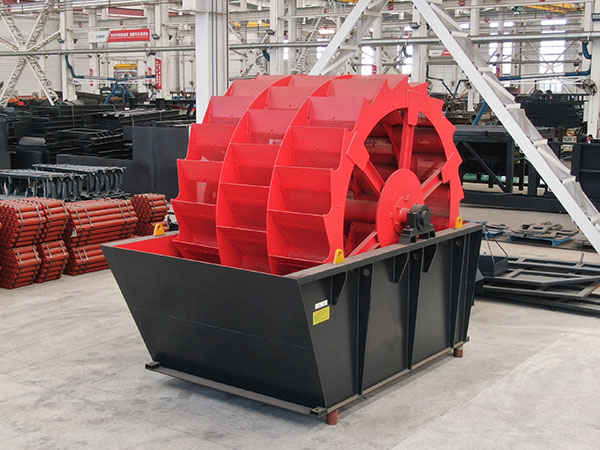

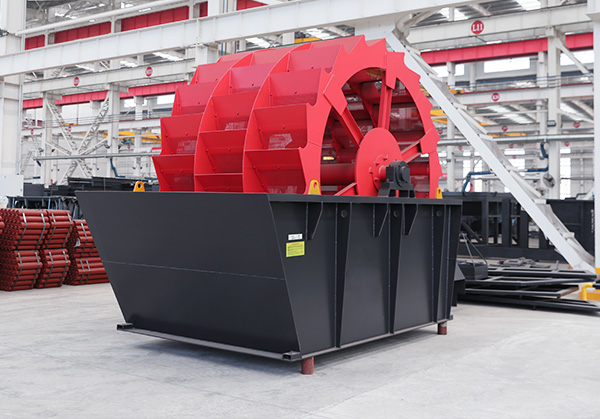

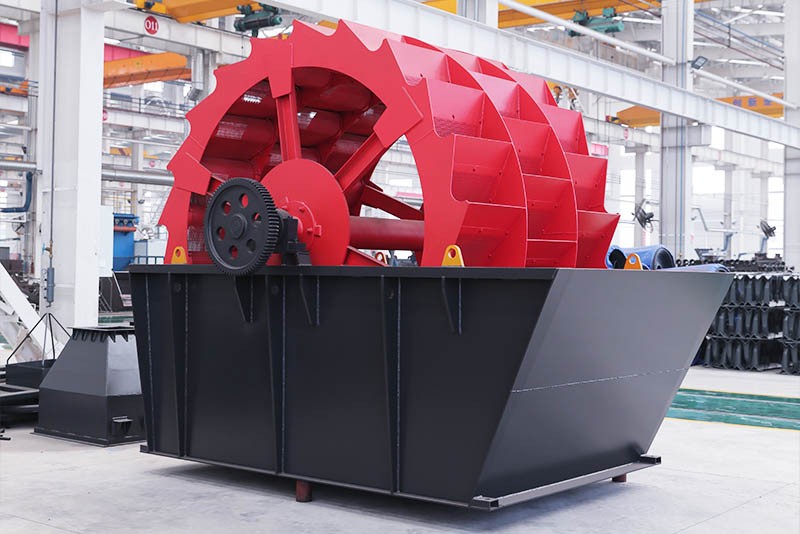

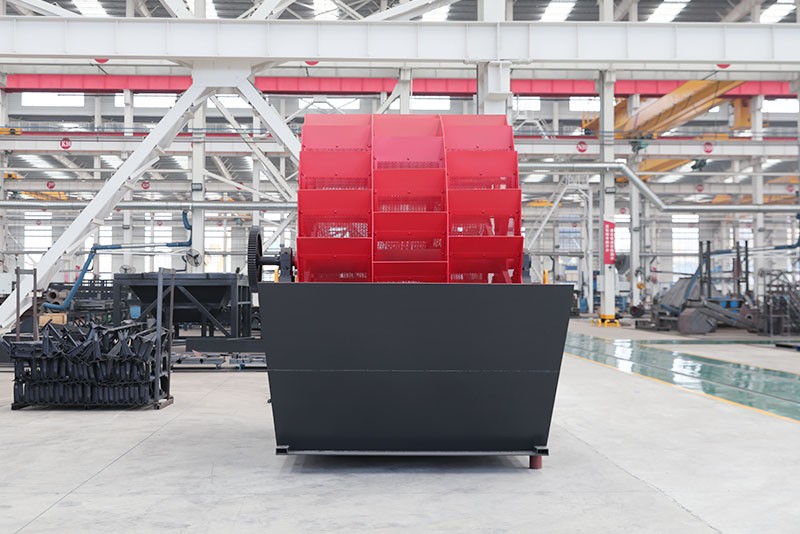

Sand Washer

Sand Washer

The sand washer is mainly used in washing the stone powder on the surface of the artificial sand. Both Electric engine and Diesel engine are optional. Capacity from 15t/h to 200t/h flexible.

Advantages

Sand washer is mainly used in artificial sand making operation, which plays a main role in washing the stone powder on the surface of the artificial sand.

 Because artificial sand production mainly uses sand making machine to crush chunks of stones into small sand, hence, the small stone powder will stick to the sand in crushing process, which affects performance of sand. So, sand washer is produced to wash the small stone powder from the sand.

Sand Washing Machines

Working Principle of Stone Sand Washer

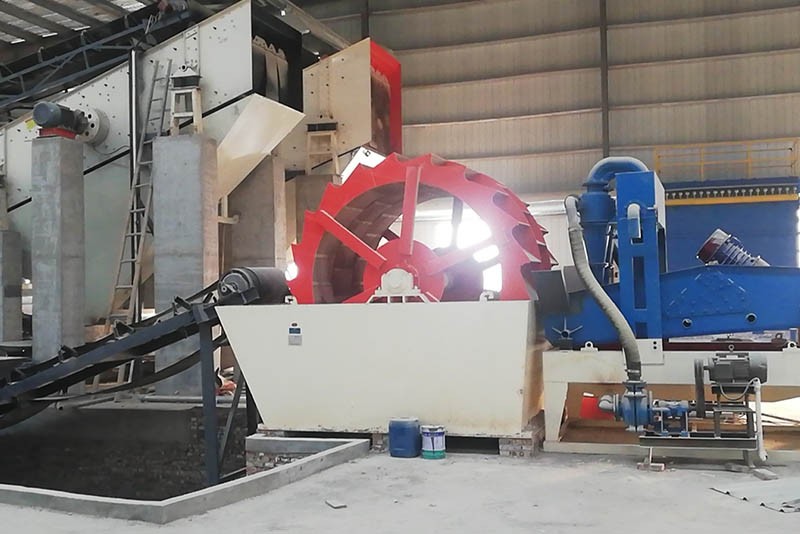

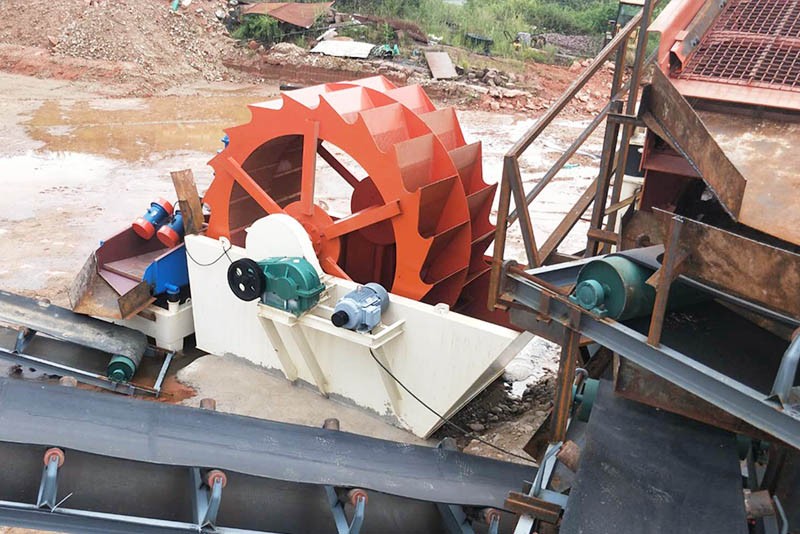

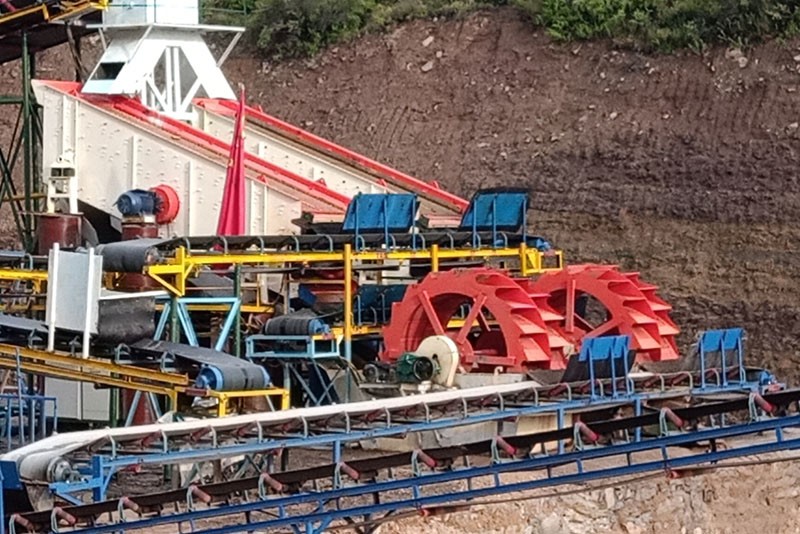

Sand washing machine manufactured by Chinese sand washer suppliers is commonly configured at the end of sand making production line. In working process, the sand is sent to sand washer through belt conveyor for washing; the bucket of sand washing equipment has water, the sand will be picked up and down to the conveyor on the other end under the rotation of wheel bucket, and then being conveyed to finished product heap by the conveyor, thus finishing sand washing operation.

Sand Washer

The sand cleaning machine produced by our company has high washing rate and less sewage discharge. The washed stone powder of our sand washer can completely meet the requirements of various construction projects

Model Specifications

Specification
XS2200
XS2600
XS2900
XS3500
Wheel bucket diameter
(mm)
2200
2600
2900
3500
Rotation Speed
(r/min)
1-2
1-2
0.8-1.5
0.8-1.2
Processing capacity (t/h)
15-30
20-50
50-100
120-200
Motor power
(kw)
4
5.5
7.5
11
Total weight
(kg)
4300
5600
8100
9900
Dimensions (L×W×H)
(mm)
3150×1910×2280
3520×2390×2690
3820×2640×3200
4420×2930×3800
