The stone crusher can crush any mineral from 1500 mm into 10 mm. Electric engine and Diesel engine are optional.Capacity from 5 t/h to 1200t/h flexible.
Stone Crusher is mainly used for crushing large stones, natural stones or rocks with large volume. Usually, the large rocks cannot be used directly, so they needs to be crushed into small pieces, and then used in building, paving and other production activities.
Today, stone crusher machine has many types and models, according to different working principles, there are jaw crusher, impact crusher, cone crusher, etc. The three stone crushers are the suitable equipment with optimized consideration when purchasing stone crushing equipment, whether from the yield, crushing hardness or technical specifications, they can meet almost all the requirements of stone crushing. While according to different materials to be crushed, stone crusher is classified into limestone crusher, granite crusher, pebble crusher, concrete crusher, aggregate crusher, etc.

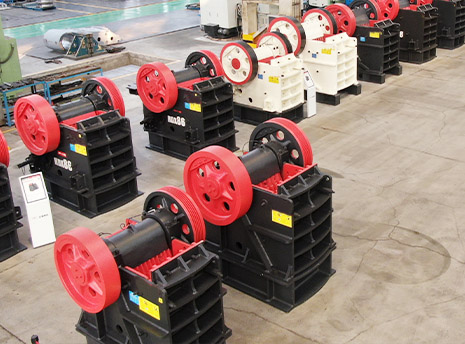

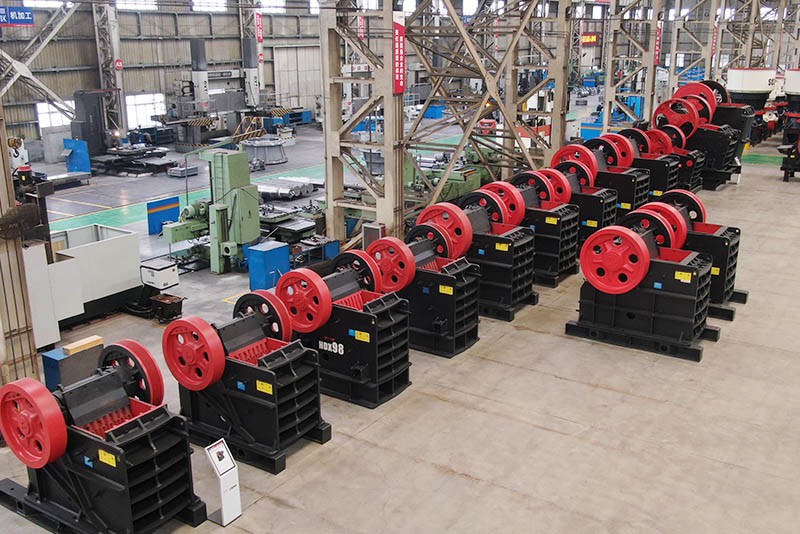

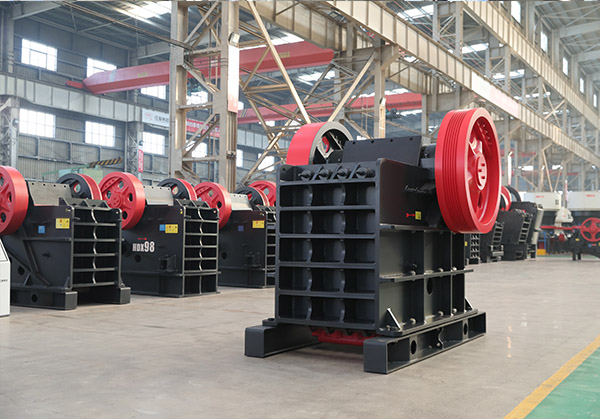

jaw crusher |

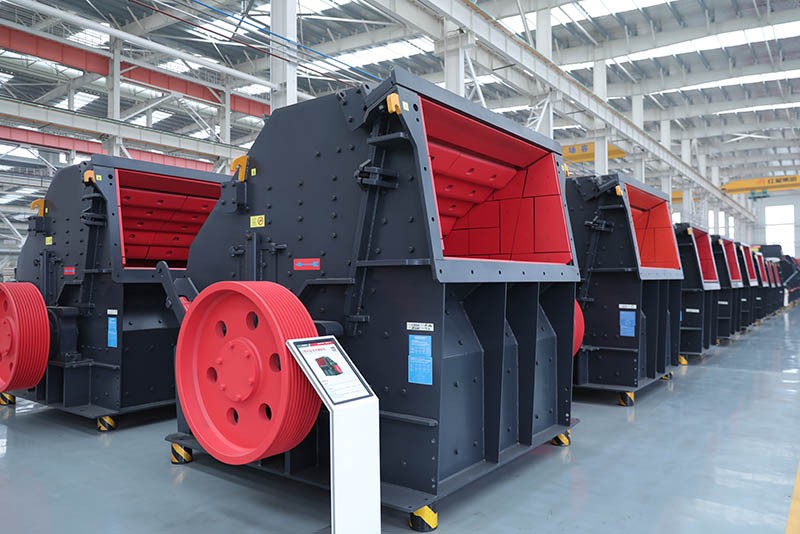

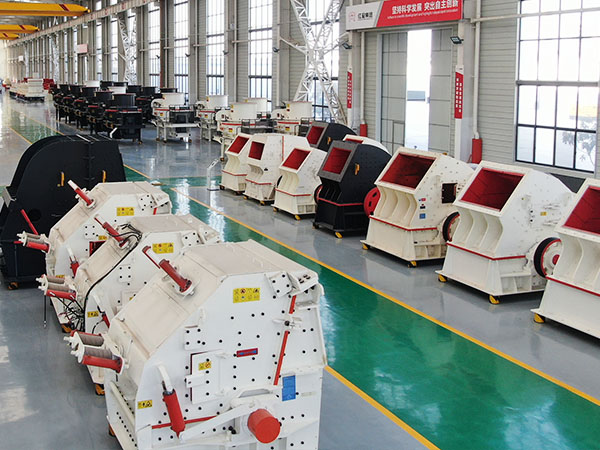

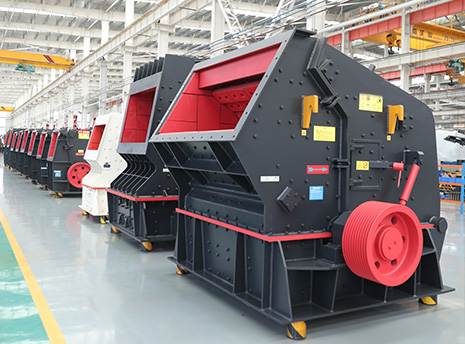

impact crusher |

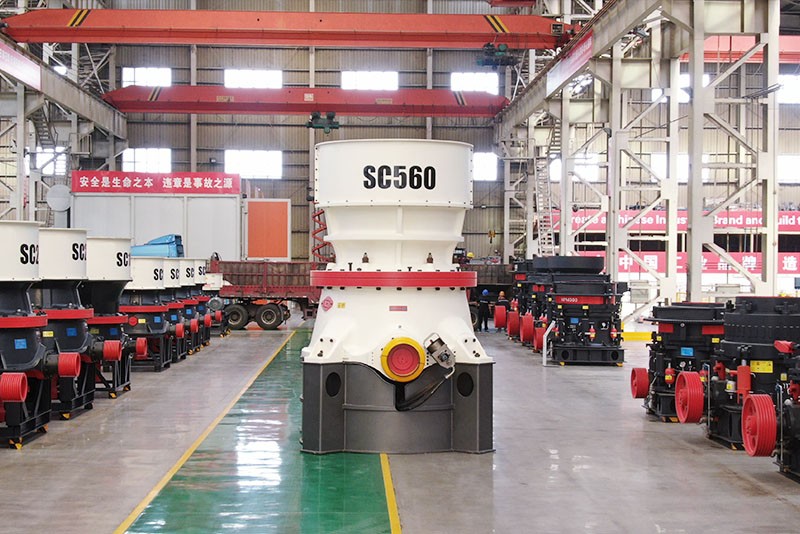

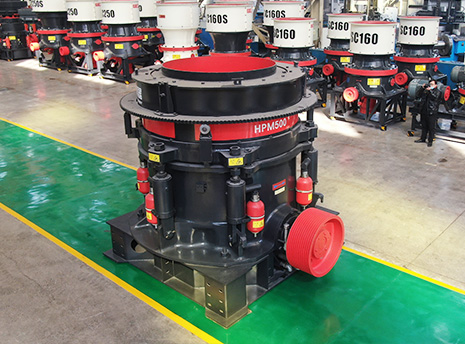

cone crusher |

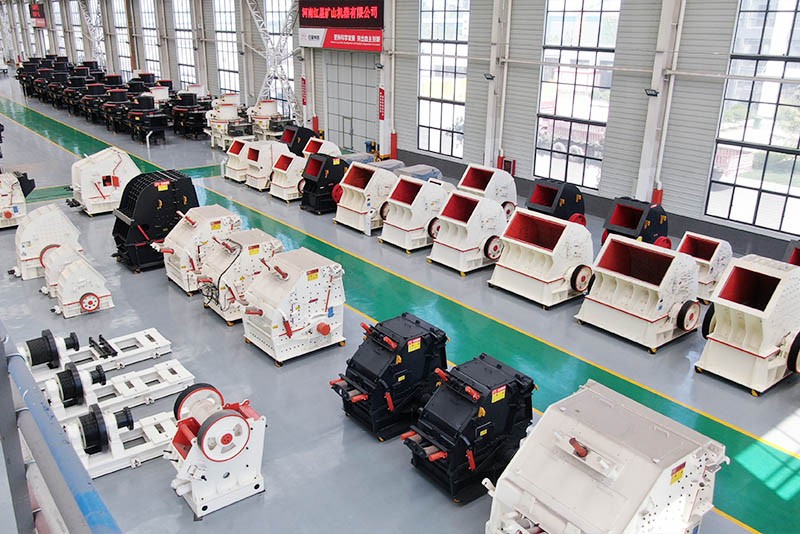

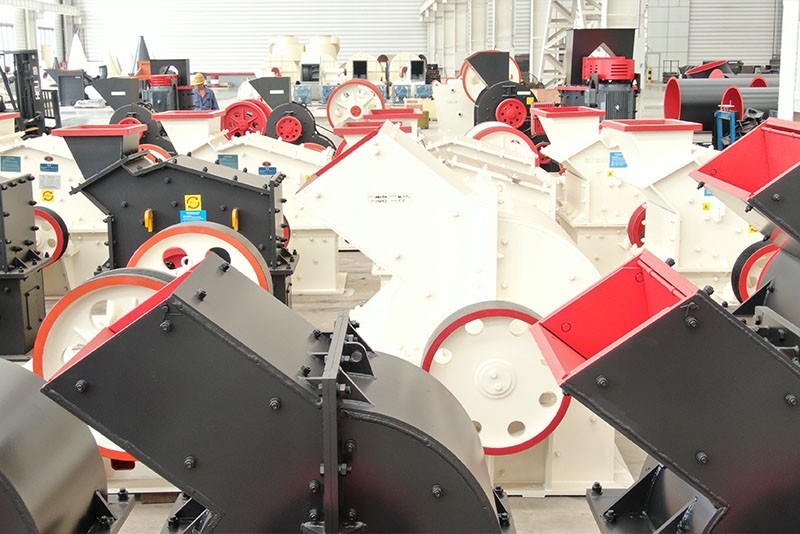

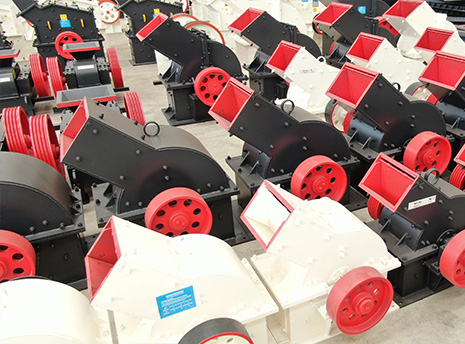

hammer crusher |

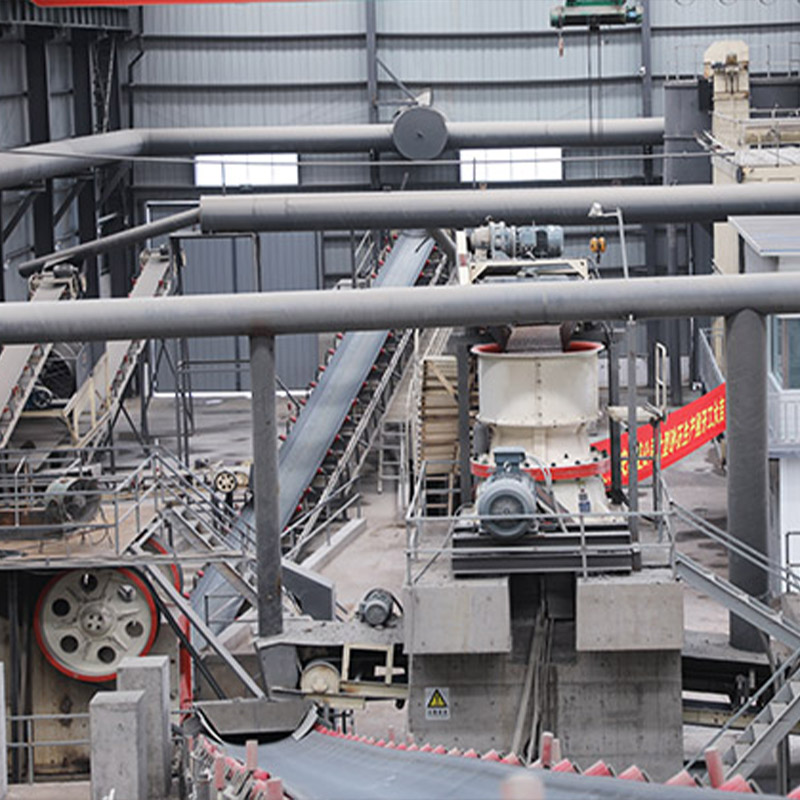

From the stone crushing to gravel particles crushing, or even fine sand making, stone crusher is needed to complete the operations. Choosing the right stone crusher is very important, which directly determines the size and quality of finished products. Rock crusher is generally not used alone, which is mostly used with other equipment to form a complete stone crushing plant, so as to achieve automatic production of the stones.
Stone crushing machine has a wide range of applied materials, such as: marble, limestone, granite, shale, limestone, greenstone, coal, concrete solid material, iron ore, copper ore and other kinds of ores as well as industrial waste residue. It can crush almost all solid brittle materials.
Fote Machinery is specialized in the production of various crushing equipment, in addition to jaw crusher, impact crusher and cone crusher, we also have limestone crusher for sale. Fote Machinery focuses on the production and sales of mine crushing machine for many years, which can produce full sets of stone production line and provide you with comprehensive technical support as well as high quality after-sales service. If you want to know more information about stone crusher, or you are interested in our product, you can contact us. Please leave us a message, and our sales personnel will contact you as soon as possible, or you can directly consult us online about the relevant information.
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 6P 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 8P 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 8P 350-380 | 150.6 | 6210×4013×4716 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
