Impact Crusher

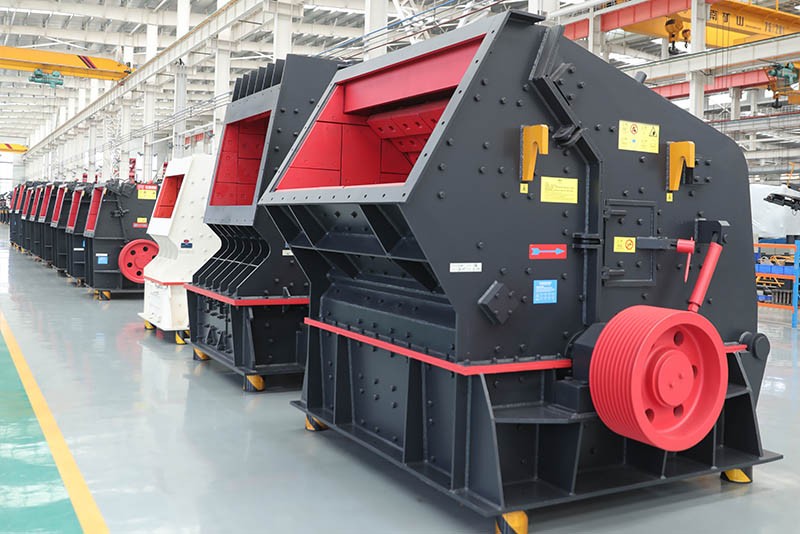

Impact Crusher

The impact crusher can crush soft and medium hard minerals from 800 mm into 10 mm. Electric and diesel engine are optional. Capacity:30 t/h- 800 t/h

Advantages

Impact crusher is usually used as medium or fine crushing equipment, which can crush materials with medium or under medium hardness, such as all kinds of ores, rocks, coke, coal and refractory materials in mining, building material, chemical industry, metallurgy, etc. After many years of development, PF impact crusher has formed a series of different models, which can be divided into small impact crusher with 400 mm*730 mm and large impact crusher with 830 mm*2040 mm according to size of feed port.

Impact Crusher Video

Impact Crusher Application:

1. Supply aggregates for use in concrete and asphalt products.

2. Supply crushed stone for construction of highways, railroads, airports, water and sewage systems, office buildings, factories and our homes.

3. Supply materials for fertilizer and mineral components used in: roofing shingles, toothpaste and many other household products.

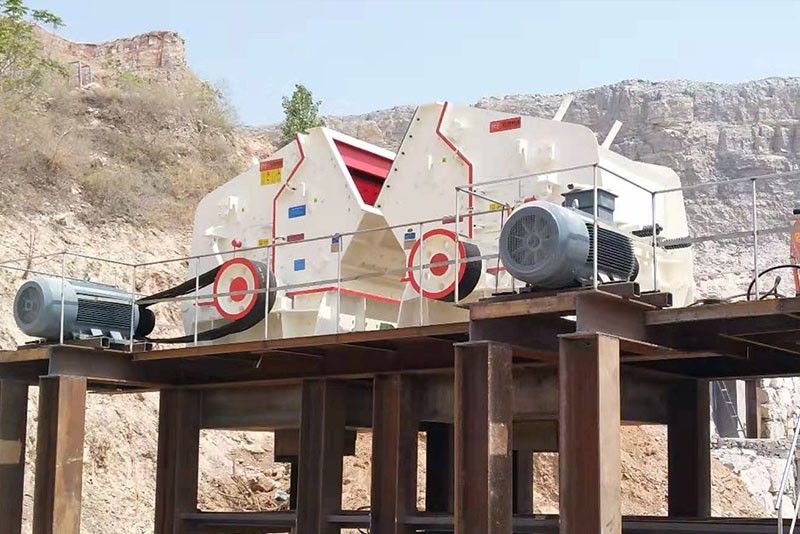

Impact Crusher Application

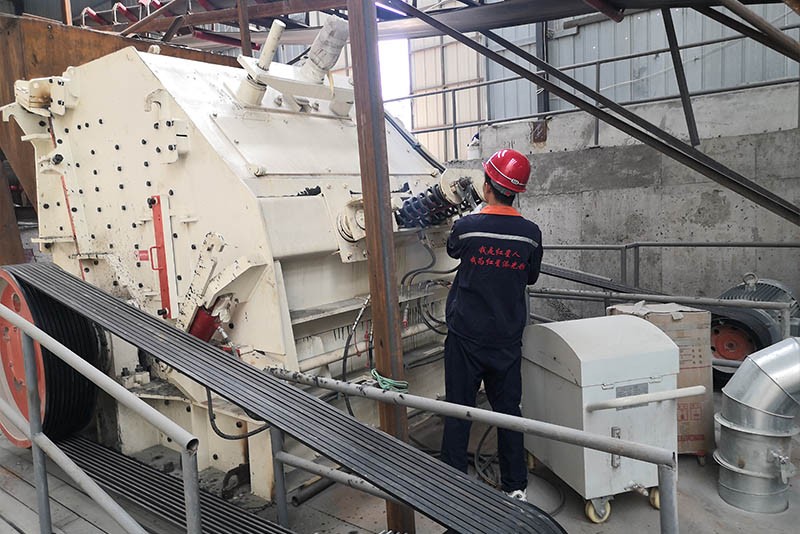

Impact Crusher Application

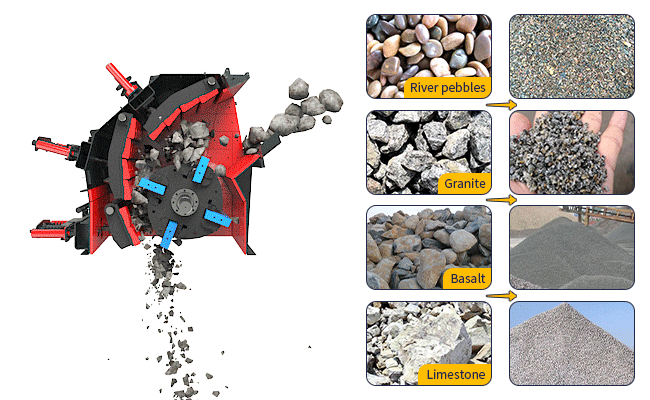

Structure and Working Principle of Stone Impact Crusher

Stone impact crusher is composed of chassis, rotor and impact plate, which is of simple structure. In operating process of impact crushing machine, plate hammer and rotor rotate in high speed and impact with materials; in the repeated impacting process, materials will collide with each other. Due to collision between materials and impact of plate hammer and impact plate, materials generates fissure and dehiscence until they are being crushed. When large materials and materials which are hard to crush are sandwiched between rotor and impact plate, impact plate is suffered from high pressure, thus making impact force backward so as to make materials which are hard to crush go through and prevent rotor from being damaged.

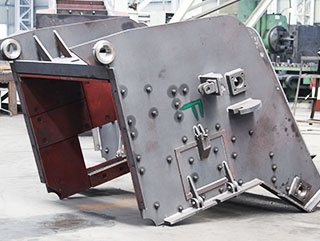

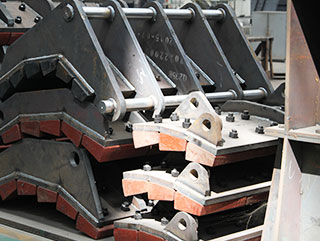

Impact crusher impact plate

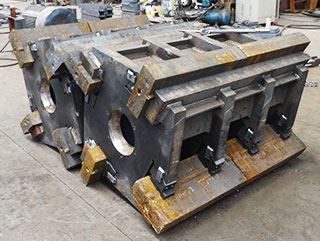

Impact crusher frame

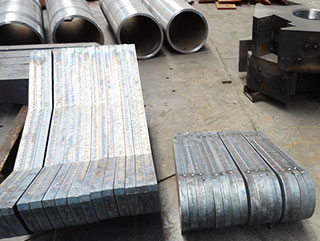

Impact crusher rotor


Impact crusher impact plate support

Impact Crusher Parts

Fote Machinery is the largestimpact crusher manufacturerin China, which has all types of impact crusher for sale, if you have any demands, please leave us a message or contact the online customer service.

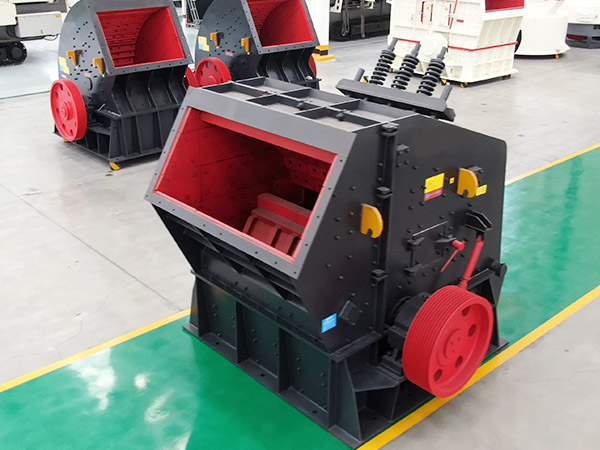

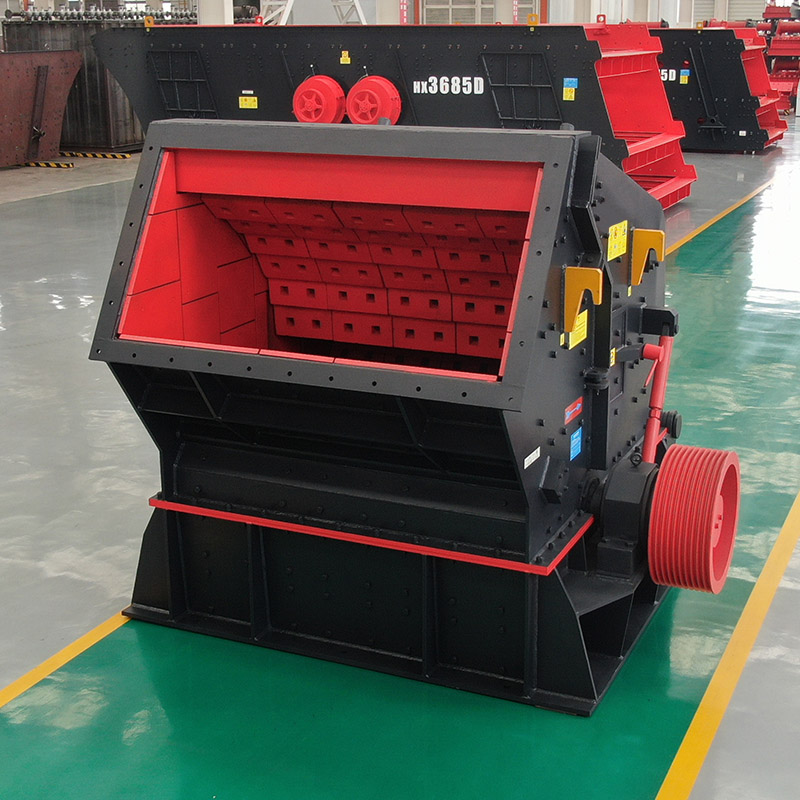

impact crusher

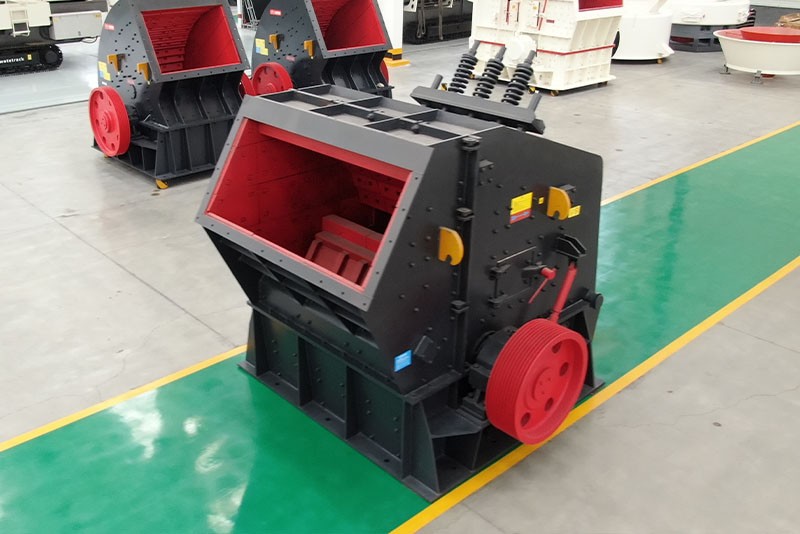

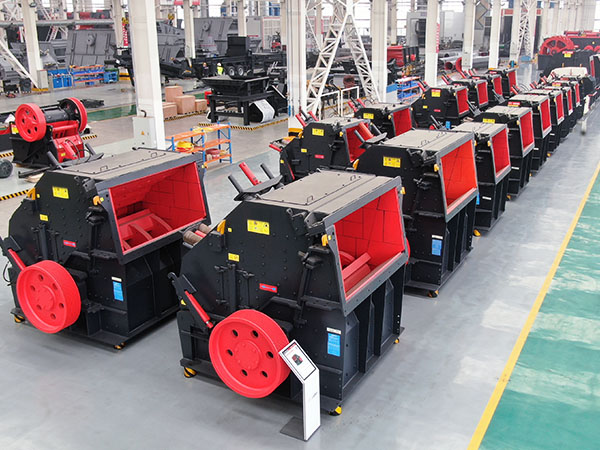

Impact Crusher

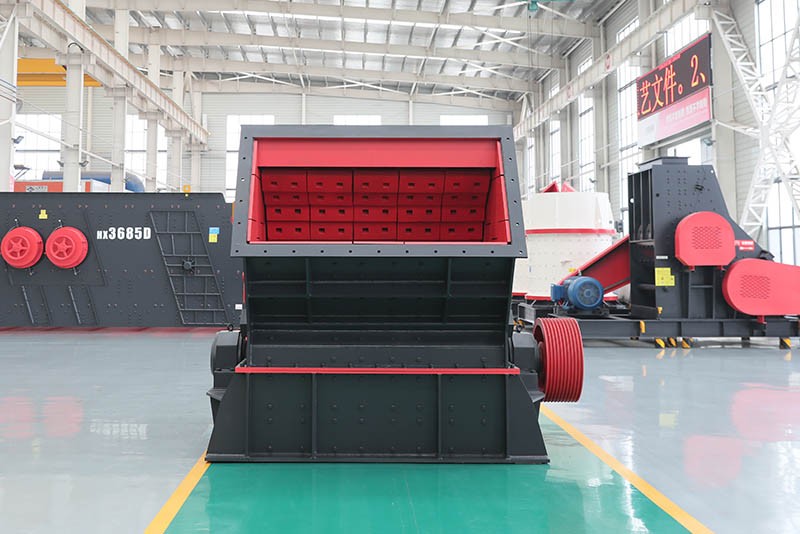

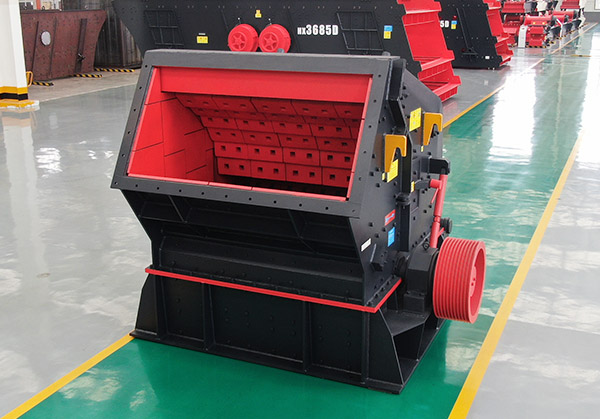

impact crusher manufacturer

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-66 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 6P   132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 6P   200 27 3180×2720×2620
PF-1320 Φ1300×2000 993×2000 500 165-320 6P   250 34 3220×3100×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 4P   315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 6P   630-710 83.21 4400×3866×4009
