It is special for raw materials for cement making. Both Electric engine and Diesel engine are optional.Capacity from 4.5t/h to 210t/h flexible.
Product specification: φ1.5×5.7~φ4.6×10.5+3.5 m
Production capacity: 4.5-210 t/h
Range of application: it is widely used in cement, silicate product, new building materials, refractory materials, glass, ceramic and other industries.

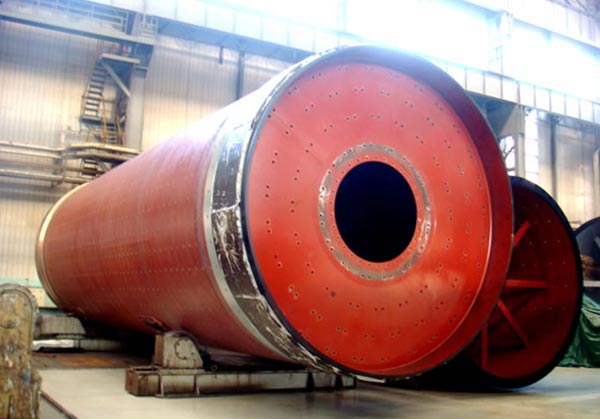

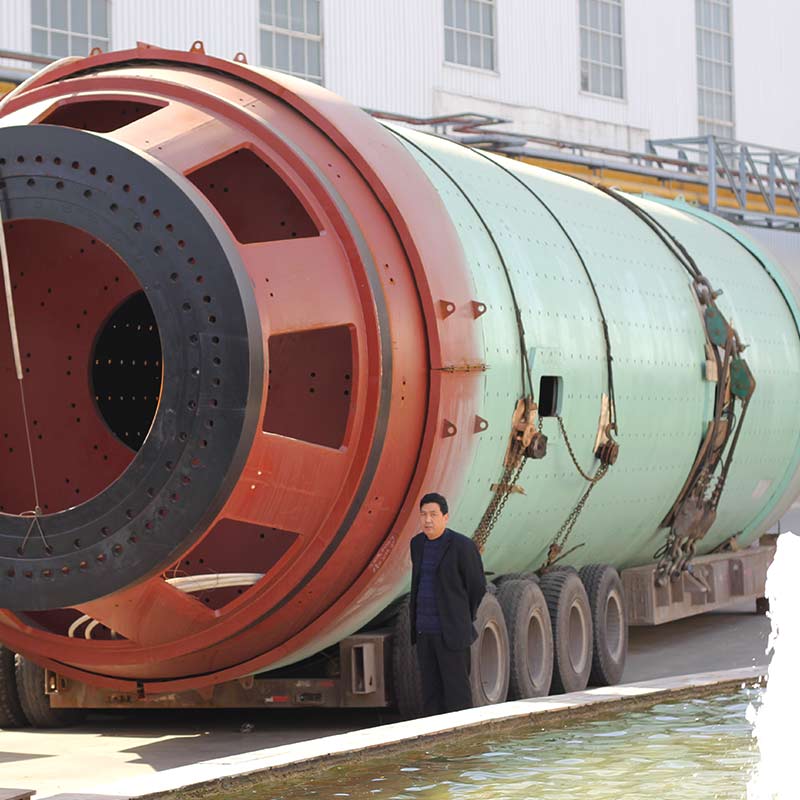

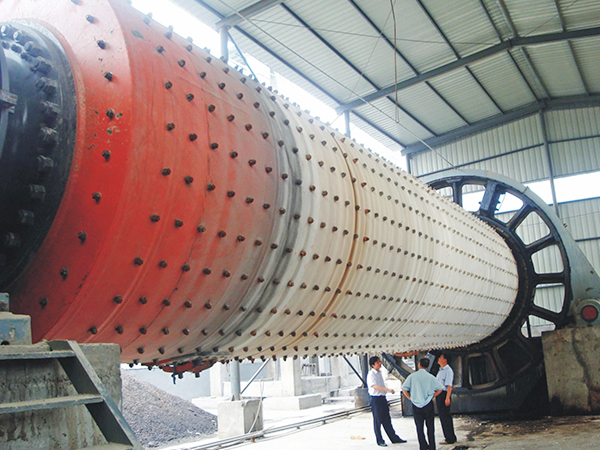

Raw material mill plays an important role in cement production, which is mainly used in grinding operation of cement raw materials. In cement production process, limestone, gypsum and other raw materials are required. While raw material mill is exactly grinding equipment of these raw materials used in cement production.
Raw material mill is broadly applied in such industries as cement, silicate product, new building materials, glass, ceramic, refractory materials, etc, which mainly grinds all kinds of ores and other materials that can be ground. After long time of exploration and conclusion in designing and production processes, our company has formed serialization products with different specifications and diversified varieties, which can satisfy different requirements of different materials.
When the cylinder of cement mill is rotated driven by transmission device, grinding media which adhere to lining board of inner wall of mill cylinder will rotate along with cylinder. After being lifted to a certain height, the materials will fall freely under the action of gravity. At this moment, grinding media crush the materials in the cylinder and continuously rise or fall in the rotating grinding mill, thus generating sliding and rolling effect so as to make grinding media, lining board and to-be-ground materials generate grinding effect. Finally, the materials are ground.
Product specification (m) |
Milling form | Transmission form | Gear box | Motor power (kw) |
Production capacity (t/h) |
Total weight (t) |
|
Model | Speed reduction ratio | ||||||
Φ1.5×5.7 | Open flow | Brim | ZD40 | 3.55 | 130 | 4.5-6 | 25.8 |
Φ1.83×6.4 | Open flow | Brim | ZD60 | 4.5 | 210 | 7.5-15 | 43 |
Φ2.2×6.5 | Circle flow | Brim | ZD70 | 5 | 380 | 14-26 | 60 |
Φ2.4×7 | Circle flow | Brim | ZD70 | 5 | 475 | 24-28 | 81 |
Φ2.4×10 | Circle flow | Brim | ZD80-4-Ⅱ | 6.435 | 570 | 32-36 | 118 |
Φ2.6×10 | Circle flow | Brim | JDX710 | 6.3 | 800 | 45-50 | 130 |
Φ3×9 | Open flow | Brim | JDX800 | 6.3 | 1000 | 55-60 | 158 |
Φ3.2×9 | Circle flow | Brim | MBY900 | 7.1 | 1250 | 62-65 | 195 |
Φ3.5×10 | Open flow | Brim | JDX900 | 5.84 | 1250 | 70-75 | 200 |
Φ3.8×7.5 | Circle flow | Brim | JDX900 | 5.6 | 1600 | 80 | 233 |
Φ4.6×10+3.5 | Circle flow | Central shaft | JQS3550 | 15.1 | 3550 | 190 | 415 |
Φ4.6×10.5+3.5 | Circle flow | Central shaft | JQS3550 | 15.1 | 3550 | 210 | 476 |
