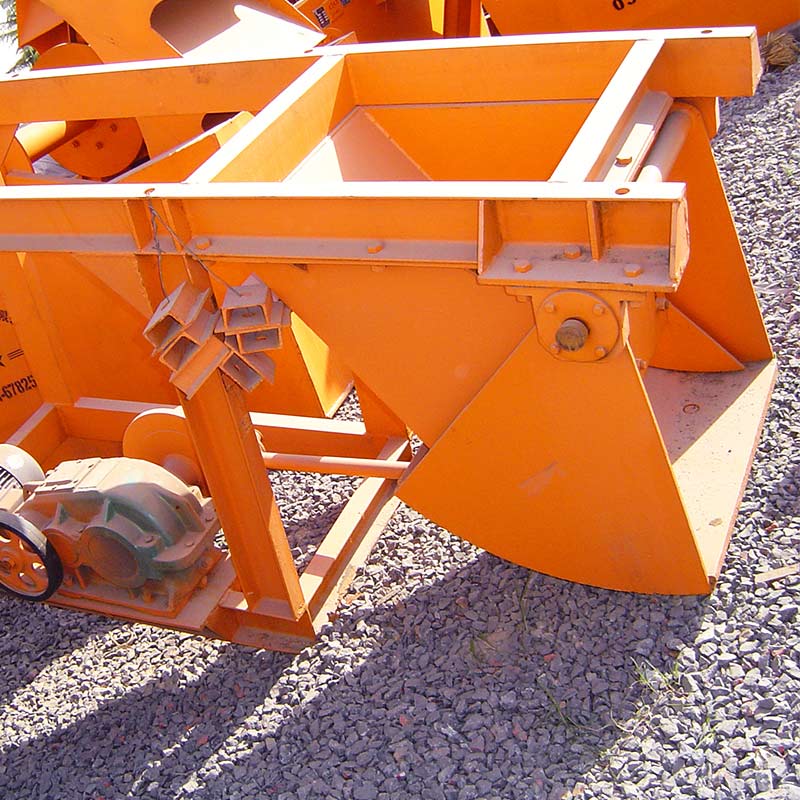

Pendulum Feeder

Pendulum Feeder

The pendulum feeder is mainly used feeding raw materials from 35 mm to 50 mm in ore dressing plant. Both Electric engine and Diesel engine are optional. Capacity : from 3 t/h to 25 t/h flexible.

Advantages

Pendulum feeder is feeding device, whose main purpose is to feed granular materials evenly into a variety of receiving equipment. It is suitable for general granular materials, but not suitable for powder and large granular materials.

Pendulum feeder is generally used in mineral processing, coal dressing, chemical industry and other sectors.

Pendulum feeder is often used in production line to connect with different devices. It is driven by electric vehicles, and the reducer passes power to the eccentric wheel, so the base plate will sway back and forth. Materials in stock bin vibrate constantly, and then enter the receiving equipment steadily from the discharging mouth.

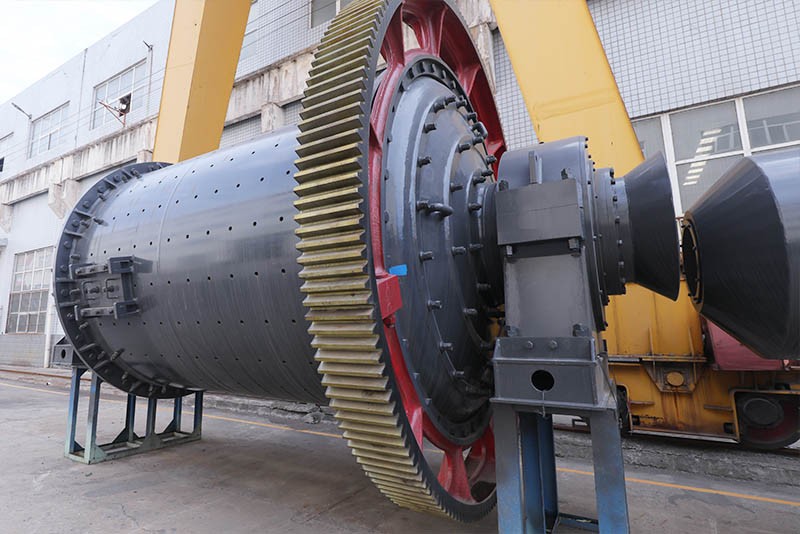

Pendulum Feeder can not only be used to feed ball mill, but also in other production lines.

Model Specifications

Product Name
Pendulum feeder
Pendulum feeder
Product size
400×400
600×600
Swing times(time/min-1)
47
45.8
Discharge opening(mm)
Width
400
600
Height
400
600
Swing journey(mm)
0-170
0-220
Max.Feeding Size(mm)
35
50
Processing capacity(t/h)
0-12
3-25
Motor
Model
Y90S-4
Y100L-4
Power(kw)
1.1
2.2
Total weight(kg)
269
558
