Industrial Dryer

Industrial Dryer

The industrial dryer is widely used for slag, limestone, coal, beneficial metal ore etc drying. Both Electric engine and Diesel engine are optional. Capacity : from 1.9 t/h to 76 t/h flexible.

Advantages

Industrial dryer generally uses hot air to carry out drying. When drying materials, suction of exhaust fan of industrial dryer makes hot air heated by hot blast stove carry out heat exchange with the materials to be dried, thus making moisture of materials evaporate into water vapor and achieving drying effect.

Industrial dryers are used for efficiently processing large bulks of material that need their respective moisture levels reduced. Depending on the amount and the makeup of material needing to be dried industrial dryers come in many different models constructed specifically for the type and bulk of material needing to be processed. The most common types of industrial dryers are fluidized bed dryers, rotary dryers, rolling bed dryers, pharmaceutical dryers, suspension/paste dryers, and dispersion dryers.

dryer

Industrial Dryers

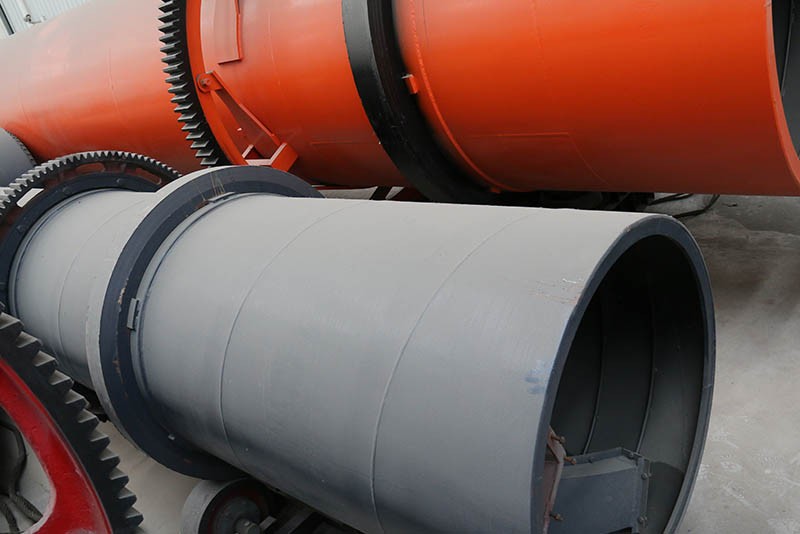

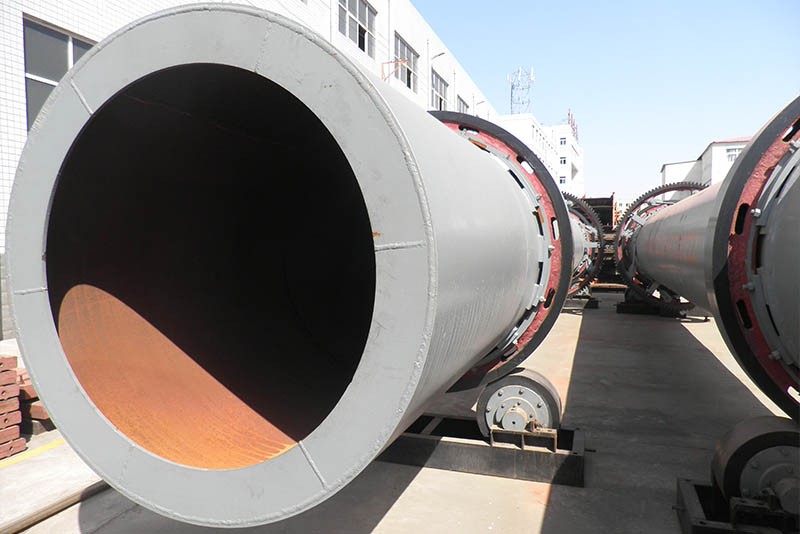

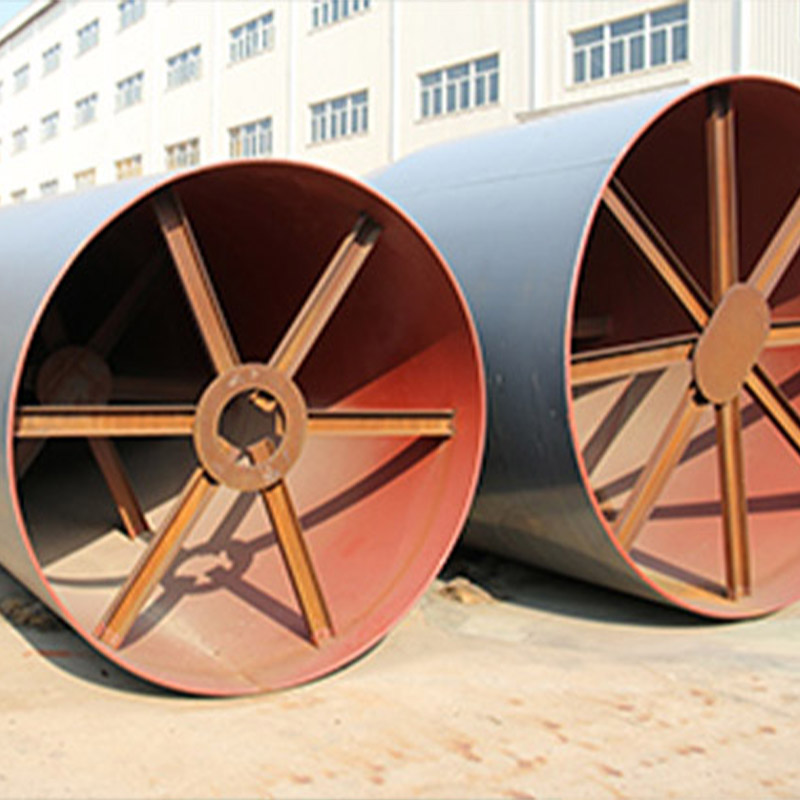

Industrial dryer usually uses rotary cylinder. There is a material lifting board on the wall of cylinder. When the industrial dryer rotates, cylinder is in a certain angle. After entering the cylinder from high end, material will slowly flow to the low end under the action of gravity and cylinder rotation. In flowing process, there is continuous hot air through the space of cylinder, thus taking away the moisture contained in the materials.

Model Specifications

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

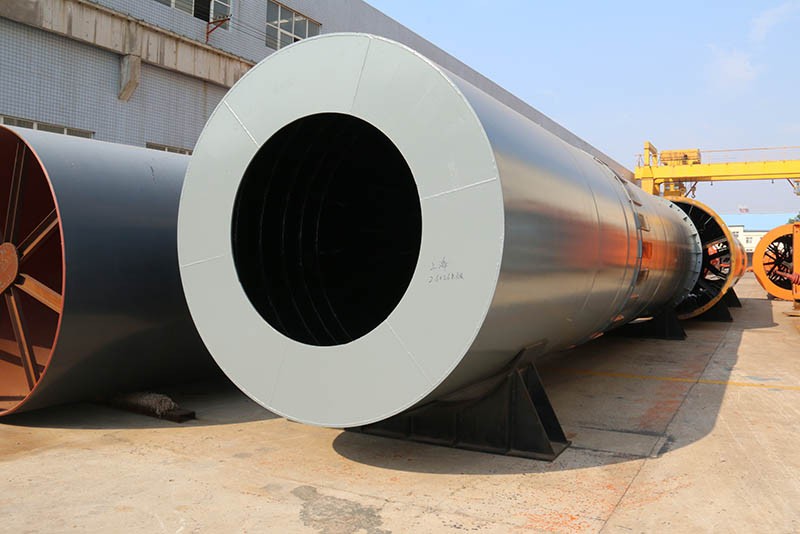

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
