Cement Mill

Cement Mill

Cement mill is key equipment for regrinding of cement clinker after it is primarily crushed and distributed by the system, which is mainly applied in manufacturing industry of cement silicate product. Both Electric engine and Diesel engine are optional. Capacity from 6.5t/h to 485t/h flexible.

Advantages

Cement mill is key equipment for regrinding of cement clinker after it is primarily crushed and distributed by the system, which is mainly applied in manufacturing industry of cement silicate product.

 After long-term exploration and conclusion in design and production process, our company has formed serialization products with different specifications that can satisfy different fineness requirements, of which the cement mill is the most outstanding product. The cement mill price of Fote Machinery is very reasonable.

cement mill

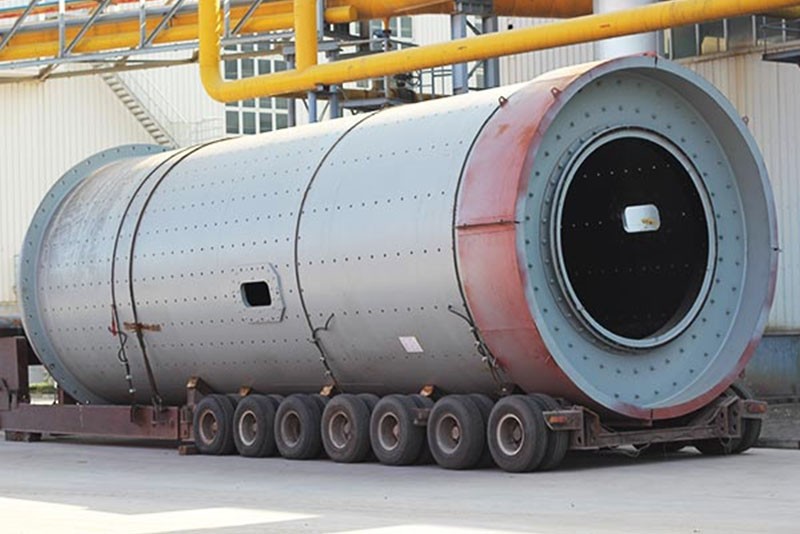

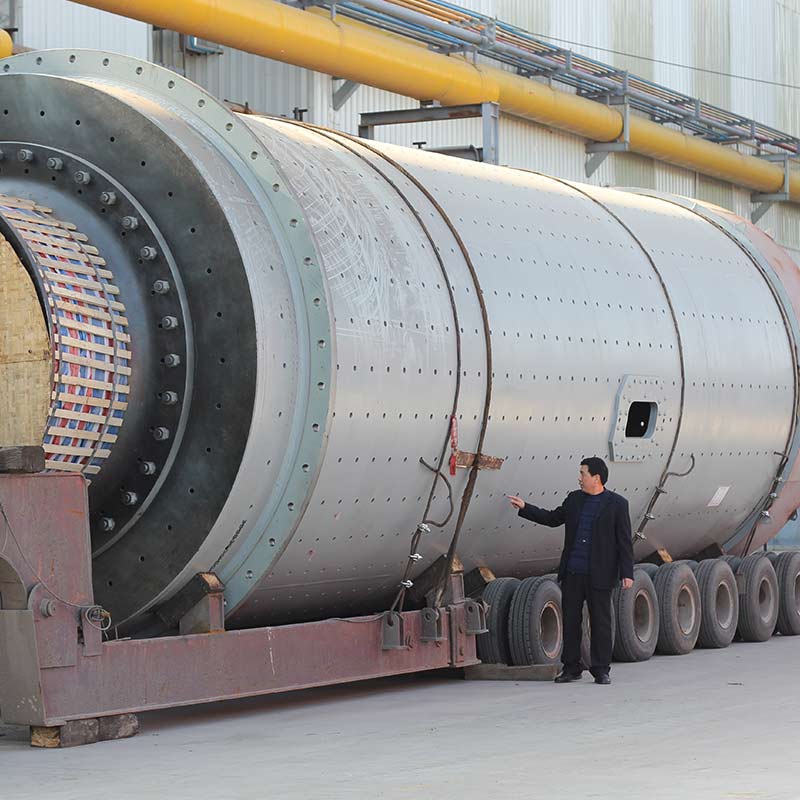

China cement mill is horizontal and cylindrical. According to different requirements of customers, sizes of different cement mills are also different. Cement mill can carry out dry or wet grinding and freely adjust fineness according to different materials. Besides, cement miller has no special requirements for materials, which can adapt to various kinds of materials.

According to different specifications of  China cement mills, our company uses proper transmission modes. There are mainly two transmission modes, namely edge transmission and center transmission. The internal cylinder uses new type of segregating liner plate and standard ladder lining board, which increases materials grinding surface area has better grading effect. Later maintenance and replacement are easier and more convenient. New partition structure uses fixed lifting plate and adjustable lifting plate, which is easy installed and maintained.

Model Specifications

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Circle flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Central shaft D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Central shaft D110 35.5 630 16-18 114
Φ2.4×13 Open flow Central shaft D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Central shaft MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Central shaft D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Central shaft D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
