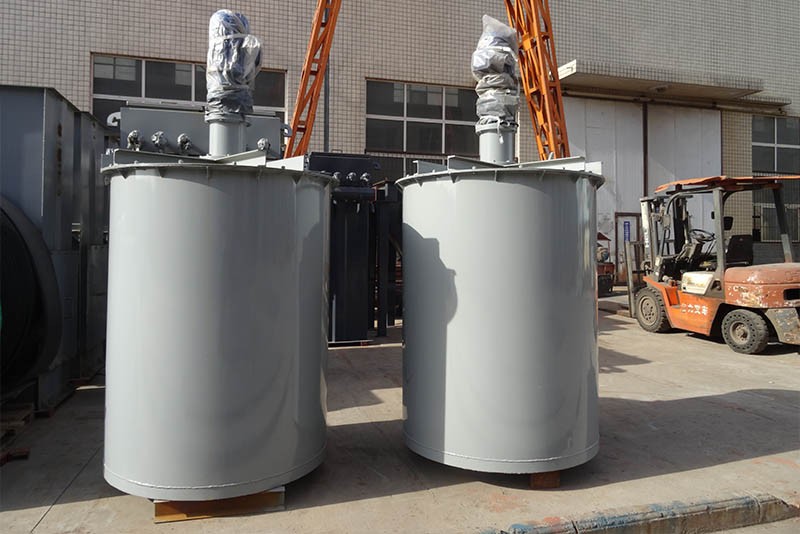

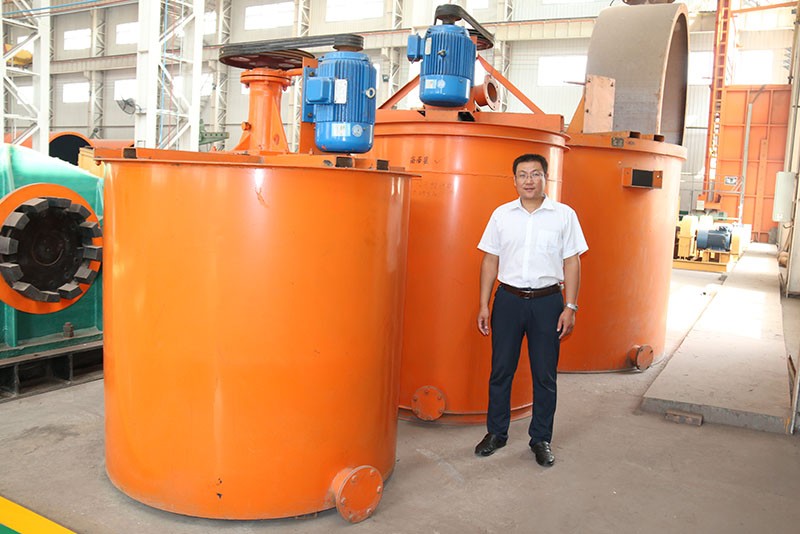

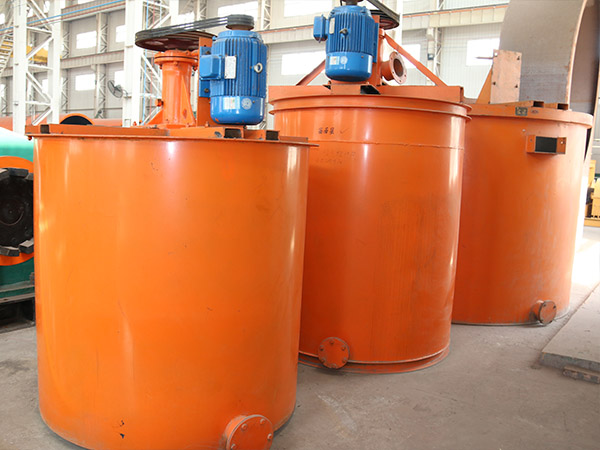

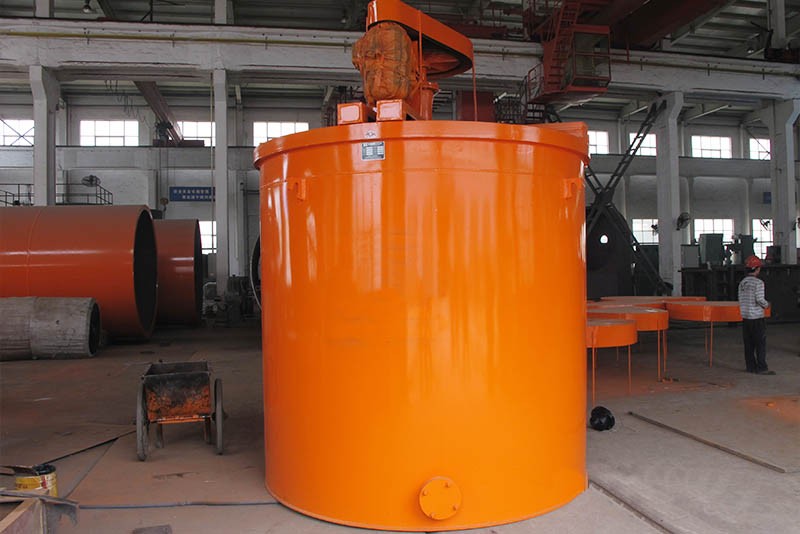

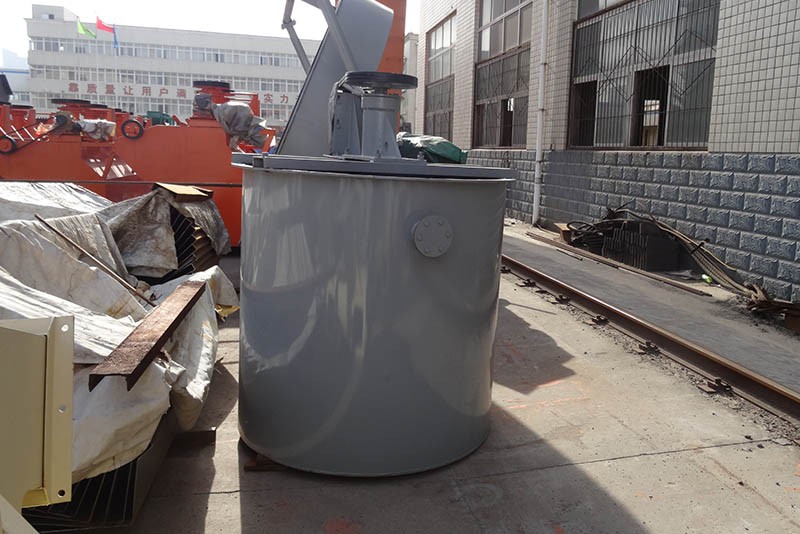

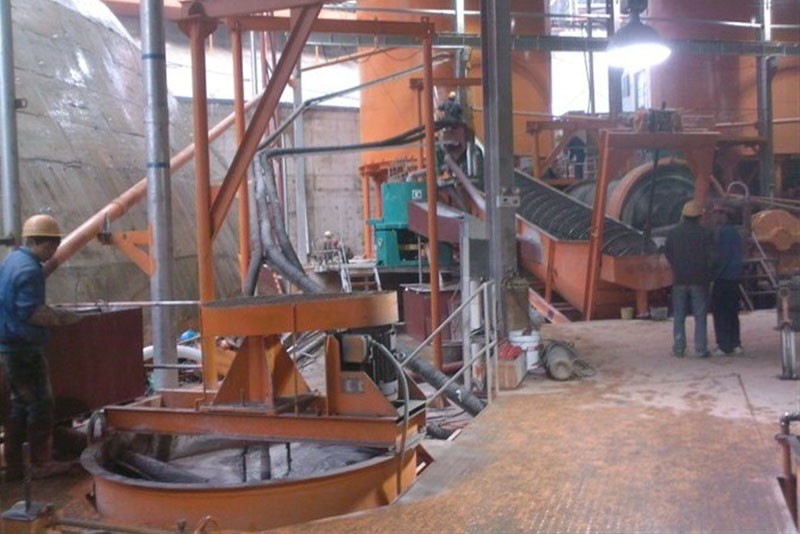

Mineral mixer is also called mineral agitation tank and mortar mixing barrel, which is mainly used to stir ore pulp before flotation work, thus making ore pulp and medicament fully mixed and creating conditions for ore beneficiation work.
Mineral mixer is also called mineral agitation tank and mortar mixing barrel, which is mainly used to stir ore pulp before flotation work, thus making ore pulp and medicament fully mixed and creating conditions for ore beneficiation work.
Mixing barrel is mainly used for stirring ore pulp before flotation work, thus making ore pulp and medicament fully mixed. It is suitable for ore beneficiation work and chemical industry. Ore dressing mixer can be used to stir various metal and non-metal minerals.

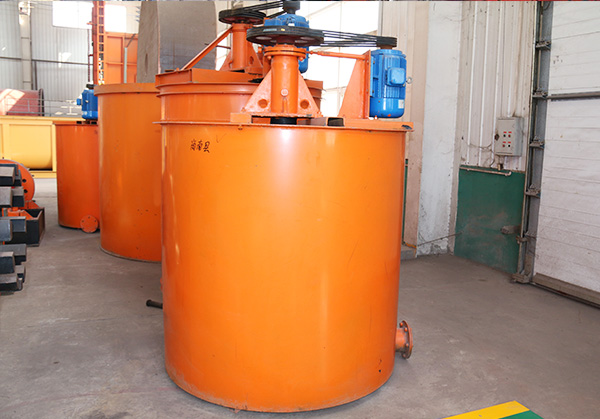

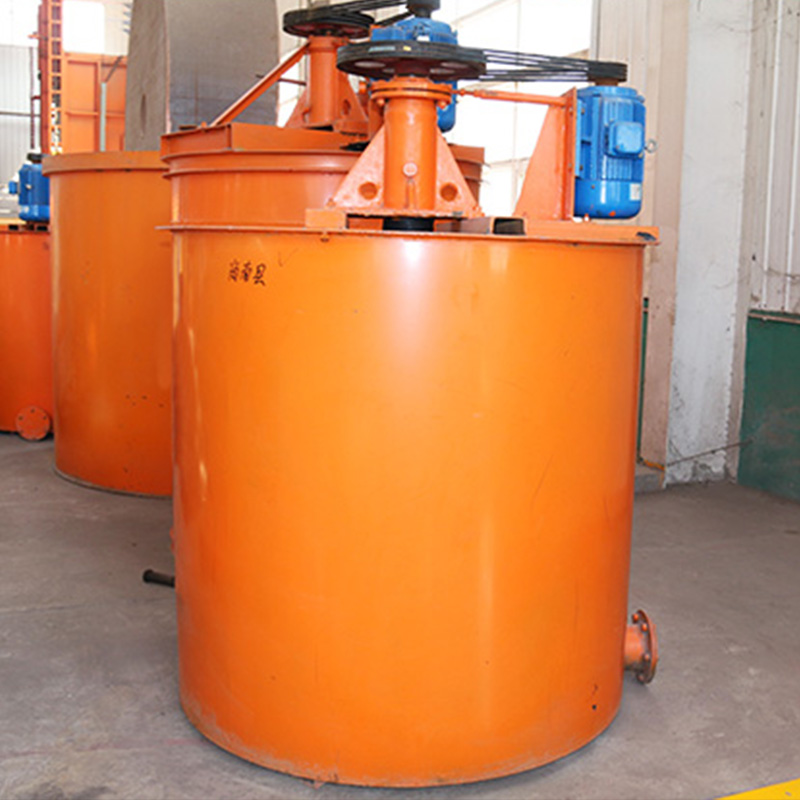

Use transmission of v-belts of electro motor to replace rotation of impeller, thus making medicament and ore pulp fully mixed. It is necessary equipment to increase drug reaction time and strengthen drug reaction quality, which is suitable for stirring ore pulp with less than 30 % concentration.
| Category | Specification Model |
Dimensions | Effective cubage(m³) |
Rotate speed(r/min) |
Motor power (kw) |
Dimensions (L×W×H) (mm) |
Total weight (kg) |
|
| Diameter (mm) |
Height (mm) |
|||||||
| Agitating tank |
XB-10×10 | 1000 | 1000 | 0.58 | 390 | 1.5 | 1130×1130×1521 | 1050 |
| XB-12×12 | 1200 | 1200 | 1.18 | 390 | 2.2 | 1130×1330×1721 | 1160 | |
| XB-15×15 | 1500 | 1500 | 2.2 | 280 | 3.0 | 1750×1640×2190 | 1270 | |
| XB-20×20 | 2000 | 2000 | 5.6 | 210 | 5.5 | 2380×2160×2850 | 1700 | |
| XB-25×25 | 2500 | 2500 | 11.2 | 190 | 7.5 | 2990×2720×3540 | 3500 | |
| XB-30×30 | 3000 | 3000 | 19 | 140 | 18.5 | 4030×3270×3010 | 5200 | |
| XB-35×35 | 3500 | 3500 | 29 | 230 | 30 | 3920×3740×4970 | 6630 | |
| XB-40×40 | 4000 | 4000 | 45 | 210 | 37 | 4520×4320×5570 | 7830 | |
| Lifting type |
XBT-10×15 | 1000 | 1500 | 1 | 510 | 2.2 | 1130×1130×2070 | 1250 |
| XBT-15×20 | 1500 | 2000 | 2.9 | 400 | 4 | 1636×1768×2785 | 1677 | |
| XBT-20×20 | 2000 | 2000 | 5.6 | 312 | 11 | 2180×2220×3015 | 3100 | |
| High- efficiency leaching tank |
XF-20×20 | 2000 | 2000 | 7.07 | 82.5 | 1.5 | 2032×2032×3595 | 2400 |
| XF-25×30 | 2500 | 3000 | 13.5 | 57.6 | 2.2 | 2532×2532×4152 | 3670 | |
| XF-30×30 | 3000 | 3000 | 22.97 | 50.0 | 2.2 | 3180×3180×4673 | 5340 | |
| XF-35×40 | 3500 | 4000 | 35.6 | 41.0 | 4.0 | 3685×3685×5314 | 7140 | |
| XF-40×45 | 4000 | 4500 | 52.78 | 33.5 | 4.0 | 4185×4185×5814 | 9300 | |
| XF-45×50 | 4500 | 5000 | 74.75 | 33.5 | 5.5 | 4685×4685×6466 | 10500 | |
| XF-50×56 | 5000 | 5600 | 102.1 | 30.6 | 5.5 | 5185×5185×6975 | 12300 | |
| XF-55×60 | 5500 | 6000 | 135.4 | 24.4 | 7.5 | 5670×5670×7569 | 13500 | |
