The small stone crusher can crush any mineral from 200 mm into 25 mm. Electric engine and Diesel engine are optional.Capacity from 5 t/h to 10t/h flexible.
Small stone crusher which is manufactured by fote heavy machinery is also named as mini stone crusher. FTM small stone crusher is mainly applied to crush materials with small hardness, such as bricks, refractory material, glass, gypsum, limestone, coal, slag, etc. Small stone crusher can also be used in the experimental process and geological research.

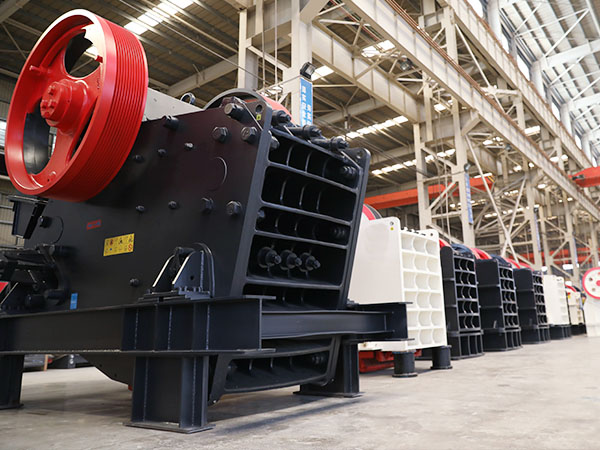

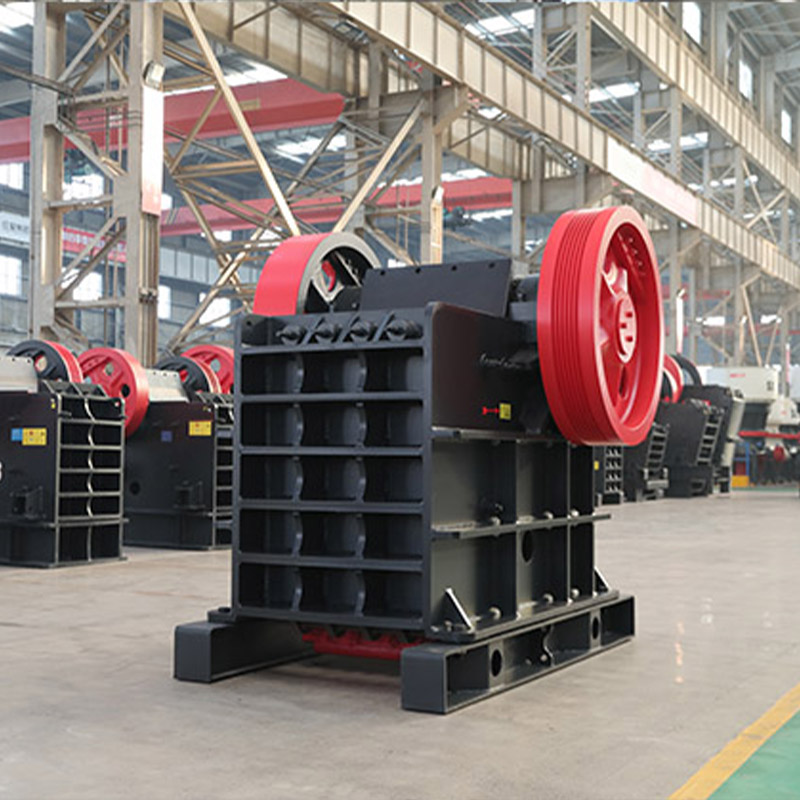

FTM small jaw crusher is also called FTM mini jaw crusher or small PE jaw crusher, which reduces the size compared with large jaw crusher. FTM small jaw crusher has the same working principle with common jaw crusher, which is smaller in size and more flexible.The smallest feed opening of FTM mini jaw crusher can reach 150mm*250mm, which is suitable for various small materials. In addition to mini jaw crusher, Fote Machinery also has other kinds of small rock crushers, such as small hammer crusher, small tertiary, small limestone crusher, small concrete crusher, small granite crusher, etc.
Small jaw crusher parameter
Model |
Feed opening (mm) |
Max.feeding size (mm) |
Adjusting range of discharge opening (mm) |
Processing capacity (t/h) |
Rotation speed of eccentric shaft (r/min) |
Motor power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |

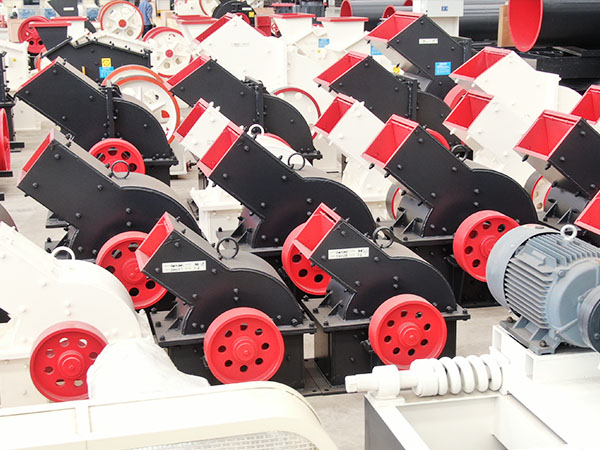

Small hammer crusher is produced by FTM in compliance with the various industry requirements and is offered at reasonable prices to the clients. The small hammer crushers are specialized in crushing hard and abrasive material such as coal, limestone, lignite,granite,slag, quartz, mineral, ores. Its feed opening is smaller than 200 mm.
The parameters of small hammer crusher:
Specifications |
Feeding Size (mm) |
Discharging size (mm) |
Capacity (m³/h) |
Motor power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |

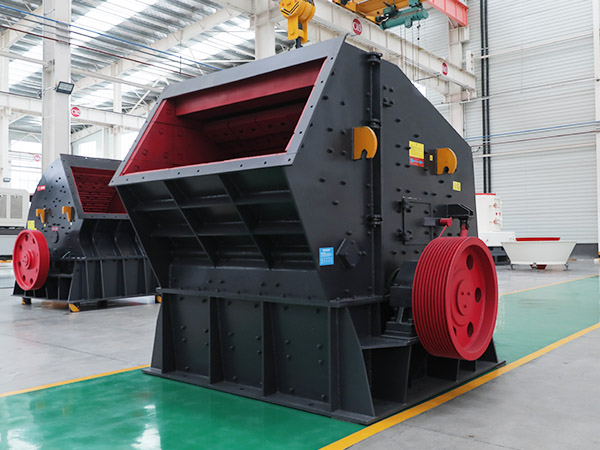

Small tertiary crusher can crush various stones with less than 300MPa compressive strength. It has such advantages as stable performance, simple structure, smaller volume, energy conservation, etc., which is suitable for crushing limestone, cement clinker, slag, etc.

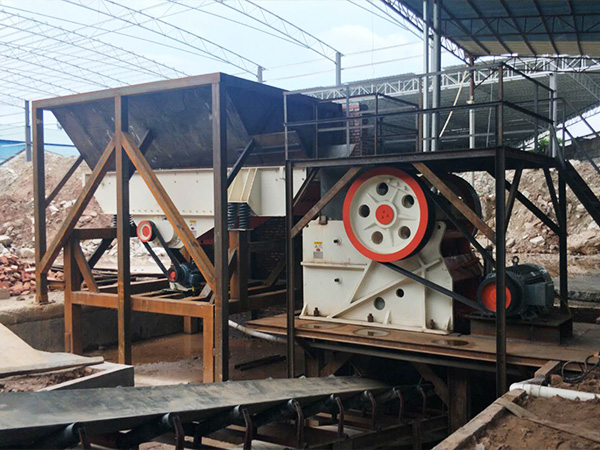

PE 250×400 small jaw crusher
Project Details:
Materials: Rock,Barite, Marble
Capacity: 15 t/h
Feeding size: 210 mm
Product: 10-60mm
Operation time: 10 h/d
Construction site: Ethiopia
Customer Feedback:
"My original plan was to purchase a production line with capacity of 10 t/h, but the actual production capacity can reach 15 t/h. I have to show my thankfulness to FTM engineer, for their optimization of production line and site installation instruction, I am very satisfied with this series of equipment."
FTM has more than 30 years history of designing and manufacturing small stone crusher. Over 10000 sets of stone crusher were produced and exported to many countries such as Egypt,Ethiopia,Congo,Mauritius,Tanzania,Zambia,Zimbabwe,South Africa,Morocco.These stone crushers are welcomed by users for their variety of models, less investment, low operating cost, convenient to move, extensive application range.
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 6P 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 8P 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 8P 350-380 | 150.6 | 6210×4013×4716 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
