The vibrating feeder can feed materials from 300mm to 800mm.Both Electric engine and Diesel engine are optional.Capacity from 80t/h to 1000t/h flexible.
Vibrating feeder is usually used in stone production line. In order to prevent feed port of crushers from being clogged, operators should evenly convey materials to feed port of crushers. Vibrating feeder is a kind of equipment which can realize quantitatively, regularly and evenly material feeding.
In working process, the centrifugal forced produced by rotation of eccentric block of vibrator of vibrating feeder makes sieve box generate vibration, and materials do continuous forward motion on the screen surface of sieve box, thus being fed to feed port evenly. Vibrating feeder can effectively prevent crusher machine from generating system halted phenomenon caused by uneven material feeding.

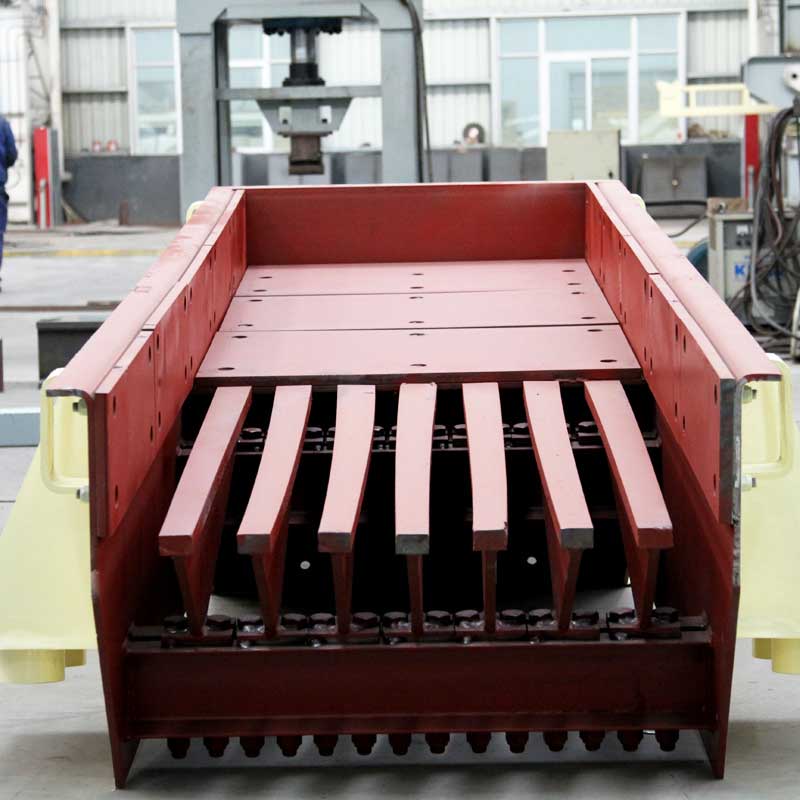

Structure of stone vibrating feeder can be divided into steel structure and grate structure. Vibrating feeder with steel structure is mostly used in stone production line, which evenly feeds all the materials to crushing equipment. Vibrating feeder with grate structure can coarsely screen materials, thus making system configuration more economy and reasonable, which is necessary equipment in crushing and screening processes.
Model | Max. Feeding Size (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Obliquity of material trough (°) |
Trough size (mm) |
Dimensions (L×W×H)(mm) |
GZD-650×2300 | 300 | 80-100 | 1.1×2 | 10-20 | 650×2300 | 2300×1360×780 |
GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
GZD-1500×3600 | 1050 | 450-1000 | 10×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
GZD-2000×3600 | 1200 | 550-1000 | 22×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
GZD-2500×5000 | 1500 | 650-1500 | 11 | 10-20 | 2500×5000 | 5000×2500×1800 |
ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3800×1640×1320 |
ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1500 | 6086×2662×1912 |
ZSW-600×180 | 800 | 700-1500 | 37 | 0-10 | 6000×1800 | 6310×3262×2230 |
